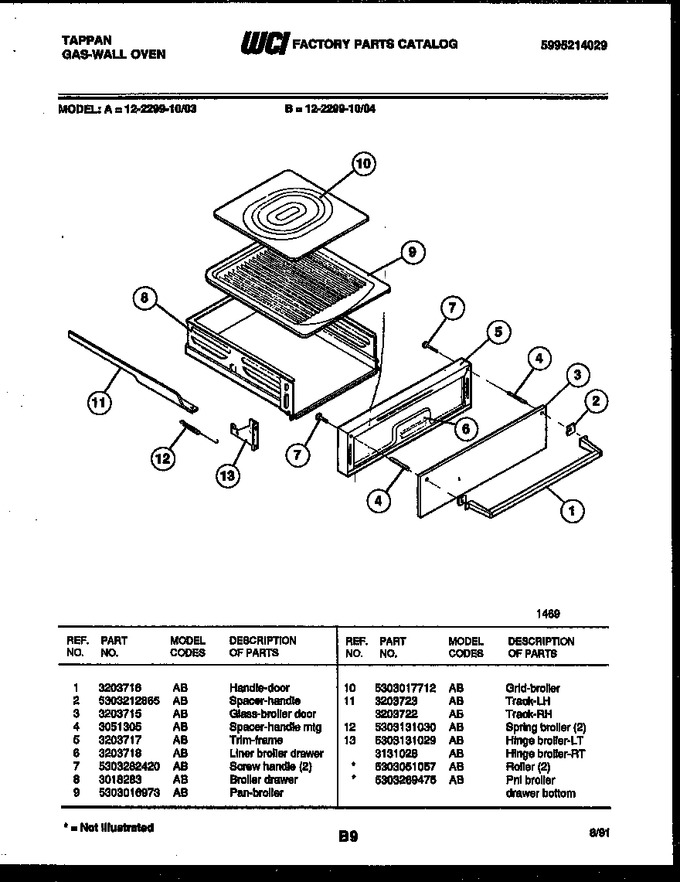

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3203716 | Handle-door |
|
- | |||||
| 2 | 5303212865 | Spacer-handle |
|
- | |||||
| 3 | 3203715 | Glass-broiler Door |
|
- | |||||
| 4 | 3051305 | Spacer-handle Mtg |
|
- | |||||
| 5 | 3203717 | Trim-frame |
|
- | |||||
| 6 | 3203718 | Liner Broiler Drawer |
|
- | |||||
| 7 | 5303282420 | Screw Handle (2) |
|
- | |||||
| 8 | 3018283 | Broiler Drawer |
|
- | |||||
| 9 | 5303016973 | Pan-broiler |
|
- | |||||
| 10 | 5303017712 | Grid-broiler |
|
- | |||||
| 11 | 3203723 | Track-lh |
|
- | |||||
| 12 | 5303131030 | Spring Broiler (2) |
|
- | |||||
| 13 | 5303131029 | Hinge Broiler-lt |
|
- | |||||
| *58285 | 5303051057 | Roller (2) |
|
- | |||||
| *58285 | 5303269475 | Pnl Broiler Drawer Bottom |
|
- | |||||
| 11A | 3203722 | Track-rh |
|
- | |||||
| 13A | 3131028 | Hinge Broiler-rt |
|
- |
