SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Control Panel


03 - Door And Drawer


04 - Oven Chassis


05 - Oven, Optional

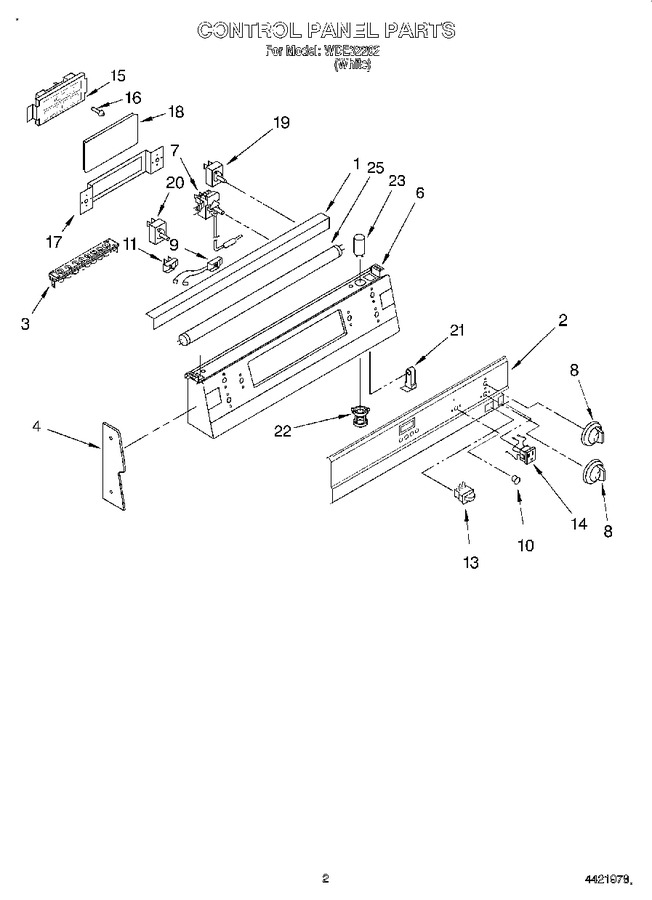

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9751255PB		Cover, Lamp		Appelez-nous	-
2	3190838		Panel, Control (overlay)		Appelez-nous	-
3	98884		Screw (2)		Appelez-nous	-
3	WP112432		Nut, (2) 10-24   (Replaces: 65034700)				$ 7.16
3	WP8203546		Fuse Block   (Replaces: 258076)			Immediately	$ 27.12
4	9750263FB		End Cap (right)		Appelez-nous	-
4	9750262FB		End Cap (left)		Appelez-nous	-
4	9780265		End Cap (screw, (4) 10 X 3/8)		Appelez-nous	-
6	9780852		Screw, (2) 8 X 3/8		Appelez-nous	-
6	3190064		Panel, Control		Appelez-nous	-
7	6700G0001		Thermostat   (Replaces: 9750401)			Immediately	$ 295.97
7	WP3400882		Screw, (2)   (Replaces: 3400816)			Immediately	$ 6.47
8	WP9750372FF		Knobs, Control (5)   (Replaces: 9750372FF)			Immediately	$ 18.86
9	9780801		Light, Indicator (oven)		Appelez-nous	-
10	WP9750343		Lens, Indicator (3)   (Replaces: 9750343)			Immediately	$ 5.14
11	9750964		Light, Indicator (2) (burners)		Appelez-nous	-
13	9751964		Switch, Oven Light		Appelez-nous	-
14	9751480FB		Outlet, Untimed		Appelez-nous	-
15	9750300CP		Timer   (Replaces: 9750300)		Appelez-nous	-
15	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
16	9750296FB		Knobs, Timer		Appelez-nous	-
17	9750715		Bracket, Timer		Appelez-nous	-
17	9780265		Screw, (3)		Appelez-nous	-
18	9750901		Lens, Timer		Appelez-nous	-
19	WP9750638		Infinite Switch (1400w (2))   (Replaces: 9750638)			Immediately	$ 102.50
20	WP9750641		Infinite Switch (2400w (2))   (Replaces: 9750641)			Immediately	$ 92.72
20	WP3400882		Infinite Switch (screw (8))   (Replaces: 3400816)			Immediately	$ 6.47
21	9750273		Receptacle, Lamp		Appelez-nous	-
22	9750866		Starter, Holder		Appelez-nous	-
23	9781118		Starter, Light		Appelez-nous	-
25	WP95292		Light, Fluorescent   (Replaces: 422581)			Immediately	$ 121.45

    View Diagram in Separate Window       Print Part List
