SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Control Panel

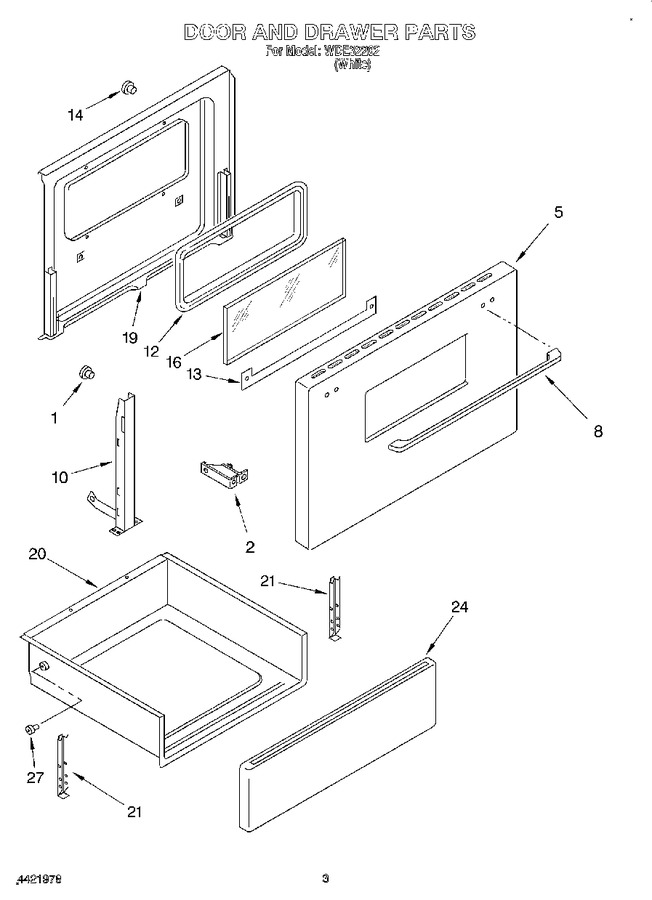

03 - Door And Drawer


04 - Oven Chassis


05 - Oven, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9724509		Bumper, Rubber (2)   (Replaces: 354241)			Immediately	$ 7.14
2	9750676		Support, Panel		Appelez-nous	-
5	9780981GW		Panel, Oven Door		Appelez-nous	-
8	9780266		Screw (4)		Appelez-nous	-
8	9751136PB		Handle, Door		Appelez-nous	-
10	9750235		Hinge, Door R Or L		Appelez-nous	-
10	9780265		Screw (4) 10 X 3/8		Appelez-nous	-
12	9750685		Gasket, Glass		Appelez-nous	-
13	9780271		Screw (2) 8 X 1/4		Appelez-nous	-
13	9750894		Retainer, Glass		Appelez-nous	-
14	238614		Bumper, Door   (Replaces: 9780771)				$ 72.68
16	9750686		Inner Glass, Clear		Appelez-nous	-
19	9780671GM		Liner, Door		Appelez-nous	-
20	9780583		Drawer & Roller		Appelez-nous	-
21	9750169		Bracket, Drawer		Appelez-nous	-
21	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
24	9750168PW		Front, Drawer		Appelez-nous	-
24	9780272		Screw (4) 10 X 1/2		Appelez-nous	-
27	814229		Support, Roller   (Replaces: 422604)			Immediately	$ 51.23

    View Diagram in Separate Window       Print Part List
