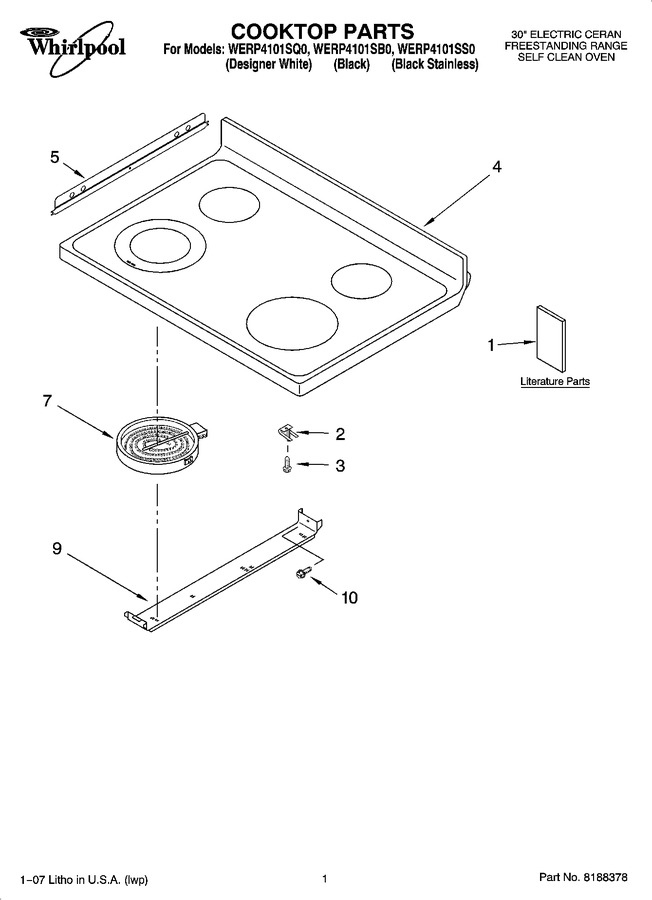

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9762182 | Instructions, Installation |
|
- | |||||
| 1 | 9757142 | Anti-tip Template (english/spanish) |
|
- | |||||
| 1 | 9757143 | Template,anti-tip (english/french) |
|
- | |||||
| 1 | 9763040 | Owners Manual |
|
- | |||||
| 1 | 9762990 | Tech Sheet (english) |
|
- | |||||
| 1 | W10041670 | Tech Sheet (french) |
|
- | |||||
| 2 | 3149191 | Spring, Locator |
|
$ 9.45 | |||||
| 3 | WP3196170 | Screw (Replaces: 3196170) |
|
$ 6.47 | |||||
| 4 | 9763329 | Cooktop (black) |
|
- | |||||
| 4 | 9763327 | Cooktop (white) |
|
- | |||||
| 5 | 9758893 | Heat Shield |
|
- | |||||
| 7 | W10823711 | Element, Surface (1200 W - Lr,rr) (Replaces: 8523698) |
|
Immediately | $ 183.95 | ||||
| 7 | W10823692 | Element, Surface (2400/1200 W - Lf) (Replaces: 9759351) |
|
Immediately | $ 204.83 | ||||
| 7 | W10823696 | Element, Surface (2500 W - Rf) (Replaces: 8523692) |
|
Immediately | $ 192.83 | ||||
| 9 | 8272791 | Bracket, Element |
|
- | |||||
| 10 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 |
