Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 9761975 Trim, Top (white) Special Order $ 82.31

1 WP9762391 Trim, Top (black Stainless Model)   (Replaces: 9762394) Special Order $ 179.12

1 WP9762391 Trim, Top (black)   (Replaces: 9762391) Special Order $ 179.12

2 WP3196164 Screw   (Replaces: 3196164) In-Stock Immediately $ 7.82

3 9761983 Handle, Door (black) Special Order $ 116.42

3 9761982 Handle, Door (white) Special Order $ 125.85

4 WP9761344 Liner, Door   (Replaces: 9761344) In-Stock Immediately $ 319.62

5 8522414 Seal, Window Special Order $ 160.59

6 WP8053948 Glass, Inner (2)   (Replaces: 9758162) Special Order $ 160.45

7 WPW10316950 Frame, Glass   (Replaces: 3186289) In-Stock Immediately $ 76.37

8 WPW10278991 Insulation, Door   (Replaces: 8272618) In-Stock Immediately $ 86.89

9 W11539580 Retainer, Insltn   (Replaces: 9761357) Special Order $ 199.17

10 W10347466 Hinge, Door (2)   (Replaces: 9761493) In-Stock Immediately $ 188.43

11 9756435 Glass, Outer Door (stainless Steel) Appelez-nous -
11 WPW10118455 Glass, Outer Door (black)   (Replaces: 9762480) In-Stock Immediately $ 285.17

11 WPW10118454 Glass, Outer Door (white)   (Replaces: 9762479) Special Order $ 278.50

12 W10761018 Trim, Side (black Left)   (Replaces: 8523171) In-Stock Immediately $ 48.39

12 WP8523166 Trim, Side (white Right)   (Replaces: 8523166) In-Stock Immediately $ 75.81

12 WP8523172 Trim, Side (white Left)   (Replaces: 8523172) In-Stock Immediately $ 62.94

12 W10761014 Trim, Side (black Right)   (Replaces: 8523165) In-Stock Immediately $ 65.66

13 W10491985 Screw   (Replaces: 3196160) In-Stock Immediately $ 6.47

14 WP8523177 Trim, Bottom (black)   (Replaces: 8523177) In-Stock Immediately $ 142.16

14 WP8523180 Trim, Bottom (black Stainless Model)   (Replaces: 8523180) Special Order $ 144.86

14 W11594186 Trim, Bottom (white)   (Replaces: 8523175) In-Stock Immediately $ 52.61

15 WPW10031790 Screw   (Replaces: W10031790) In-Stock Immediately $ 7.87

17 3196025 Clip, Door Glass Special Order $ 20.10

18 3196794 Bracket, Window (2) Special Order $ 24.34

19 WP3196175 Screw   (Replaces: 3196165) In-Stock Immediately $ 6.47

21 9761517 Clip, Door Mntg (2) Special Order $ 41.24

22 W10777162 Screw   (Replaces: W10031780) In-Stock Immediately $ 7.04

9756779 Strain Relief Appelez-nous -
350956 Paint, Pressurized Spray (12 Oz.) (almond) Special Order $ 46.30

242827 Wire (14 Ga. 150 C Yellow) Appelez-nous -
799832 Kit. Porcelain Repair (white) Appelez-nous -
8212471 Touch-up Self-clean(1/2 Pt)   (Replaces: 242756) In-Stock Immediately $ 74.76

261582 Grease Appelez-nous -
WPW10208653 Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514) In-Stock Immediately $ 49.92

WPW10208653 Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132) In-Stock Immediately $ 49.92

511873 Paint, Touch-up 1/2 Oz. (white Porcelain) Special Order $ 44.36

350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 34.39

285006 Paint, Pressurized Spray 12 Oz.) (superior Black) In-Stock Immediately $ 51.34

350942 Paint, Pressurized Spray (12 Oz.) (primer, White)   (Replaces: 206922) Special Order $ 80.69

72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 11.07

799344 Paint, Bulk (1 Qt.) (white) (uncut) Special Order $ 237.46

978883 Paint, Bulk (1 Qt.) (almond (uncut)) Appelez-nous -
241430 Foil, Aluminum Oven (18`` X 25`) Special Order $ 20.65

3191048 Cleaner, Glass Appelez-nous -
W11447673 Anti-tip Kit   (Replaces: W10017440) In-Stock Immediately $ 28.64

9762815 Harness, Wire (cooktop Left) Special Order $ 105.24

9762958 Harness, Wire (cooktop Right) Appelez-nous -
9762428 Harness, Wire, Door Switch/sensor Appelez-nous -
9763632 Harness, Wire (main) Appelez-nous -
3184020 Wire, Ground   (Replaces: 8523279) Special Order $ 74.50

WP72107 Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107) Special Order $ 16.12

8524132 Shield, Wiring Appelez-nous -
313660 Clip, Ground Wire Appelez-nous -
W11244557 Screw   (Replaces: 3196173) Special Order $ 12.25

WP3196154 Screw, Ground   (Replaces: 3196154) Special Order $ 7.04

242828 Wire (12 Ga. 150 C Black) Appelez-nous -
242821 Wire (14 Ga. 150 C Blue) Appelez-nous -
242822 Wire (14 Ga. 150 C Brown) Appelez-nous -
242830 Wire (14 Ga. 200 C Brown) Appelez-nous -
242823 Wire (14 Ga. 150 C Green) Appelez-nous -
242824 Wire (14 Ga. 150 C Orange) Appelez-nous -
242825 Wire (14 Ga. 150 C Red) Appelez-nous -
242831 Wire (14 Ga. 200 C Red) Special Order $ 342.23


    View Diagram in Separate Window     Print Icon   Print Part List

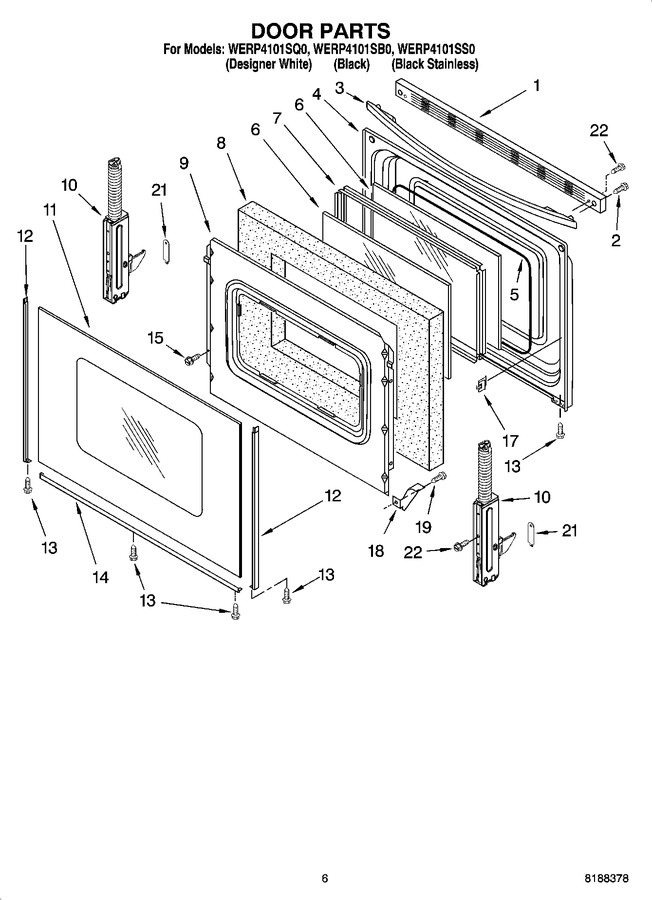

Diagram for WERP4101SS0
