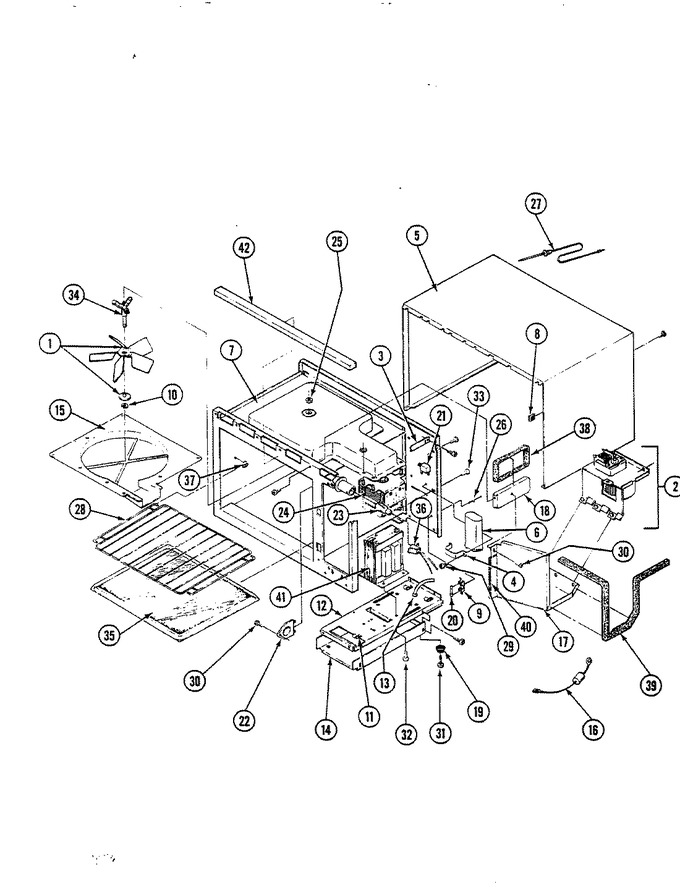

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 04021190 | Blade, Bushing Assembly | 01 |
|
- | ||||
| 2 | Y02030144 | Bracket, Blower Support | 01 |
|
- | ||||
| 2 | 04021191 | Blower Assembly | 01 |
|
- | ||||
| 2 | 04020957 | Brace, Lower Left Support | 01 |
|
- | ||||
| 2 | 01110029 | Motor, Blower | 01 |
|
- | ||||
| 2 | Y02170119 | Housing, Blower | 01 |
|
- | ||||
| 2 | Y01110016 | Wheel, Blower | 01 |
|
- | ||||
| 3 | 02020020 | Brace, Upper Right Support | 01 |
|
- | ||||
| 4 | 02030123 | Bracket | 01 |
|
- | ||||
| 5 | 03050035 | Probe Jack Nut | 01 |
|
- | ||||
| 5 | 02140044 | Cabinet Assy | 01 |
|
- | ||||
| 6 | Y01020023 | Capacitor | 01 |
|
- | ||||
| 6 | 01010008 | Resistor, Bleeder | 01 |
|
- | ||||
| 7 | 04021362 | Cavity | 01 |
|
- | ||||
| 8 | 03110027 | Clip, Cabinet (rt) | 01 |
|
- | ||||
| 8 | 03110046 | Clip, Cabinet (lt) | 01 |
|
- | ||||
| 9 | Y03110021 | Clip Canoe | 01 |
|
- | ||||
| 9 | Y01100036 | Clip, Fuse | 01 |
|
- | ||||
| 10 | Y03110055 | Clip, Stirrer | 01 |
|
- | ||||
| 11 | 03110022 | Clip, Wire Harness | 01 |
|
- | ||||
| 12 | 02040053 | Plate, Component Mounting | 01 |
|
- | ||||
| 13 | 01080050 | Cord, Power (blk) | 01 |
|
- | ||||
| 14 | 02300020 | Cover, Comp Mntg | 01 |
|
- | ||||
| 15 | Y02300045 | Cover, Stirrer | 01 |
|
- | ||||
| 16 | Y04010206 | Diode | 01 |
|
- | ||||
| 17 | Y04020842 | Duct Assembly, Magnetron | 01 |
|
- | ||||
| 18 | Y02170112 | Support, Mag Duct | 01 |
|
- | ||||
| 19 | Y02230008 | Foot, Base | 01 |
|
- | ||||
| 20 | Y01050005 | Fuse 15a 125v | 01 |
|
- | ||||
| 21 | 01170008 | Jack, Probe | 01 |
|
- | ||||
| 22 | Y02400007 | Lens, Bulb | 01 |
|
- | ||||
| 23 | Y01060028 | Lamp, Oven | 01 |
|
- | ||||
| 24 | 01040004 | Magnetron | 01 |
|
- | ||||
| 25 | 03050007 | Nut, Shaft Stirrer | 01 |
|
- | ||||
| 26 | Y03060004 | Rivet, Pop | 01 |
|
- | ||||
| 27 | 01220006 | Probe, Temp. | 01 |
|
- | ||||
| 28 | Y02410004 | Rack, Oven | 01 |
|
- | ||||
| 29 | Y03020076 | Screw | 01 |
|
- | ||||
| 30 | 03010098 | Screw | 01 |
|
- | ||||
| 31 | W11233072 | Screw (Replaces: Y03020068) | 01 |
|
Immediately | $ 12.62 | |||
| 32 | 03010094 | Screw | 01 |
|
- | ||||
| 33 | WP8281227 | Screw (Replaces: Y03010144) | 01 |
|
$ 9.40 | ||||
| 34 | 02360045 | Shaft, Stirrer | 01 |
|
- | ||||
| 35 | Y02280024 | Shelf, Glass | 01 |
|
- | ||||
| 36 | 03030011 | Probe Jack Locknut | 01 |
|
- | ||||
| 36 | 01100041 | Socket, Lamp | 01 |
|
- | ||||
| 37 | 02010031 | Support, Rack | 01 |
|
- | ||||
| 37 | Y01180008 | Switch, Temperature Limit | 01 |
|
- | ||||
| 37 | 02010039 | Support | 01 |
|
- | ||||
| 38 | 02310109 | Tape, Foam | 01 |
|
- | ||||
| 39 | 02310070 | Tape, Foam | 01 |
|
- | ||||
| 40 | 02310071 | Tape, Foam | 01 |
|
- | ||||
| 41 | 01130028 | Transformer, H.v. | 01 |
|
- | ||||
| 42 | 02100140 | Trim, Intake (blk) | 01 |
|
- | ||||
| 43 | Y04060532 | Hv Lead Wire (8 ``) | 01 |
|
- | ||||
| 43 | Y04060535 | Hv Lead Wire (16``) | 01 |
|
- | ||||
| 43 | 04010158 | Wiring Harness | 01 |
|
- |
