SELECT A DIAGRAM

Diagram for 01 - Base & Cavity (cm46d-9p)
01 - Base & Cavity (cm46d-9p)

Diagram for 02 - Control Panel
02 - Control Panel

Diagram for 03 - Control Panel (cm46d-9p)
03 - Control Panel (cm46d-9p)

Diagram for 04 - Door (cm46d-9p)
04 - Door (cm46d-9p)

Diagram for 05 - Door-lower (ser. 1-16)
05 - Door-lower (ser. 1-16)

Diagram for 06 - Door-lower (ser. 17)
06 - Door-lower (ser. 17)

Diagram for 07 - Interlock Switches (cm46d-9p)
07 - Interlock Switches (cm46d-9p)

Diagram for 08 - Oven/body
08 - Oven/body


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 02030128 Bracket, Control Panel-upper 01 Appelez-nous -
2 02030137 Bracket, Control Panel-lower 01 Appelez-nous -
3 01210059 Board, Control 01 Appelez-nous -
4 02060256 Frame, Control Panel 01 Appelez-nous -
5 790119 Isrt-dr Frame, No Logo 01 Appelez-nous -
5 02100091 Insert, Trim Door 01 Appelez-nous -
6 Y03010147 Screw (top) 01 Appelez-nous -
7 03020011 Screw 01 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

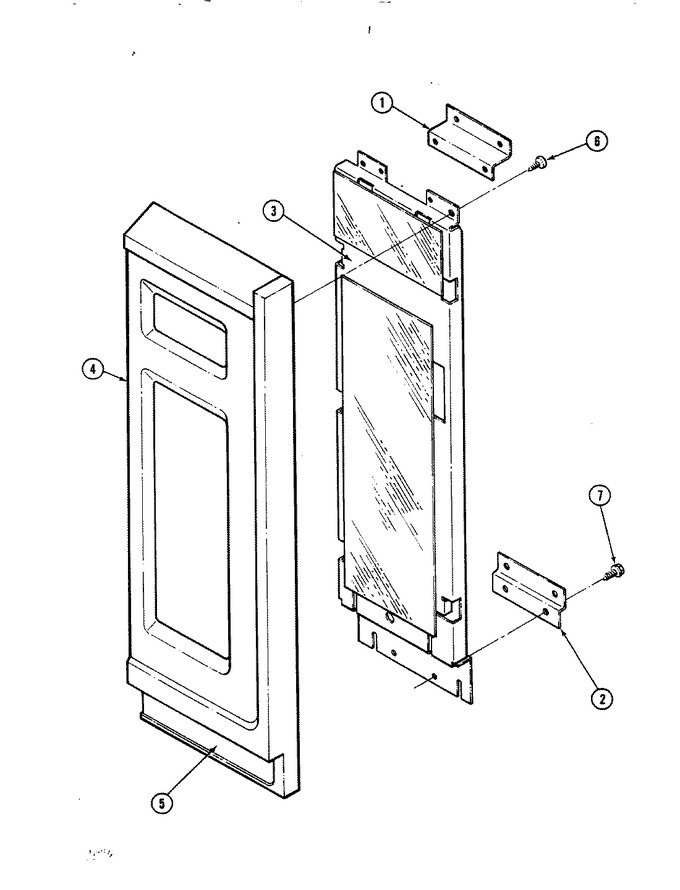

Diagram for 97F-4EXWM9
