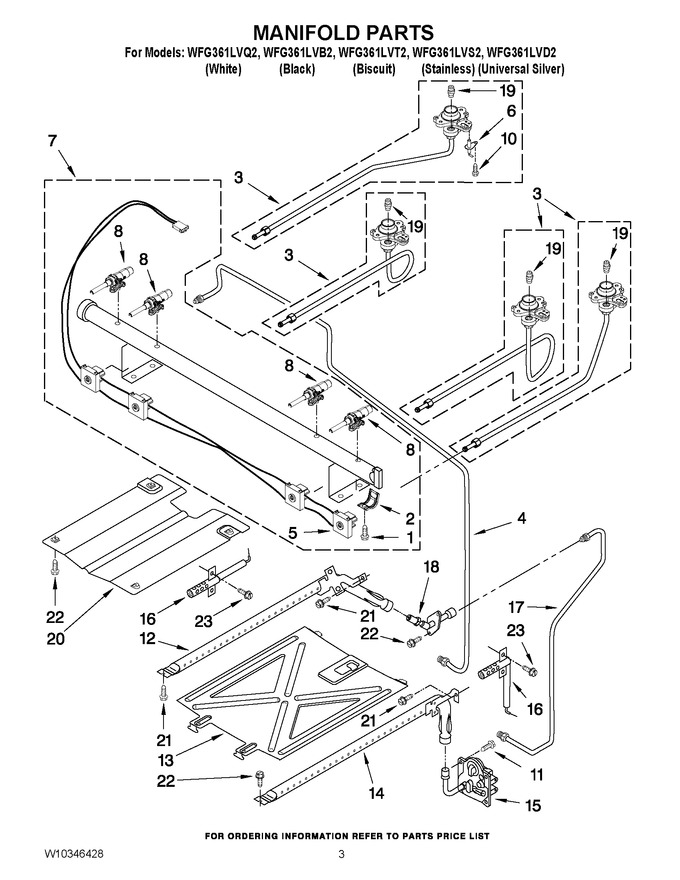

03 - Manifold Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer & Broiler Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10295997 | Screw, Valve |
|
$ 6.27 | |||||
| 2 | W10949105 | Bracket, Mounting (Replaces: W10295996) |
|
$ 19.50 | |||||
| 3 | WPW10201349 | Tubing, Burner W/orifice (left Front) (Replaces: W10201349) |
|
$ 101.31 | |||||
| 3 | W10175217 | Tubing, Burner W/orifice (right Rear) |
|
$ 45.79 | |||||
| 3 | WPW10201350 | Tubing, Burner W/orifice (right Front) (Replaces: W10201350) |
|
$ 96.62 | |||||
| 3 | W10175220 | Tubing, Burner W/orifice (left Rear) |
|
$ 52.19 | |||||
| 4 | W10314249 | Tubing (manifold To Regulator) |
|
- | |||||
| 5 | WPW10295998 | Harness, Igniter (w/switches) (Replaces: W10295998) |
|
$ 195.62 | |||||
| 6 | WPW10216419 | Electrode (Replaces: W10216419) |
|
Immediately | $ 31.47 | ||||
| 7 | W10314242 | Assembly, Manifold |
|
$ 281.19 | |||||
| 8 | WPW10279614 | Valve (lf - Rf - Lr) (Replaces: W10279614) |
|
$ 239.84 | |||||
| 8 | WPW10247744 | Valve (right Rear) (Replaces: W10247744) |
|
$ 240.10 | |||||
| 10 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.12 | ||||
| 11 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.16 | |||||
| 12 | WP8054078 | Burner, Broiler (Replaces: 8054078) |
|
$ 205.16 | |||||
| 13 | WPW10184491 | Spreader, Flame (oven) (Replaces: W10184491) |
|
$ 217.31 | |||||
| 14 | WP9758078 | Burner, Bake (Replaces: 9758078) |
|
$ 193.77 | |||||
| 15 | WPW10293048 | Valve/regulator (Replaces: 9761959) |
|
Immediately | $ 398.39 | ||||
| 16 | WP9758079 | Igniter (bake) (Replaces: 9758079) |
|
Immediately | $ 36.91 | ||||
| 16 | WP8054129 | Igniter (broil) (Replaces: 8054129) |
|
Immediately | $ 123.43 | ||||
| 17 | 8272222 | Tubing (broiler Fitting To Valve) |
|
$ 97.58 | |||||
| 18 | 3186489 | Fitting, Broiler |
|
$ 64.58 | |||||
| 19 | WPW10170508 | Orifice, Burner (left Rear) (Replaces: W10170508) |
|
$ 81.61 | |||||
| 19 | WPW10185023 | Orifice, Burner (left Front) (Replaces: W10185023) |
|
$ 80.62 | |||||
| 19 | WPW10170506 | Orifice, Burner (right Rear) (Replaces: W10170506) |
|
$ 83.87 | |||||
| 20 | W10137062 | Spreader, Flame (broiler) |
|
- | |||||
| 21 | 3196265 | Screw |
|
- | |||||
| 22 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 12.62 | ||||
| 23 | W11684507 | Screw (Replaces: 3196385) |
|
$ 12.23 | |||||
| NI | WPW10170531 | Spuds, Lp Gas (kit) (Replaces: W10170531) |
|
$ 91.84 |
