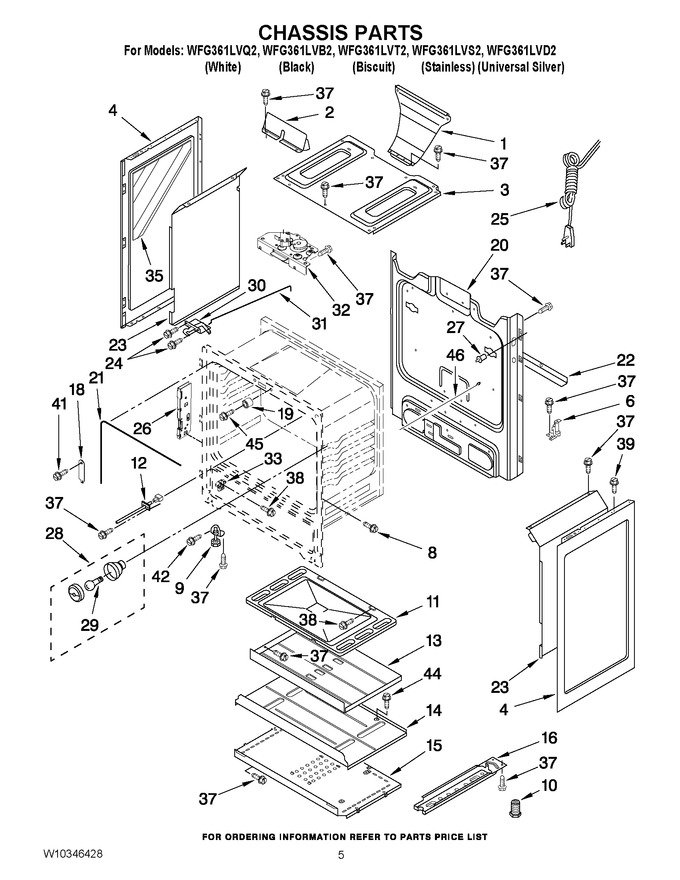

04 - Chassis Parts


05 - Door Parts


06 - Drawer & Broiler Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11457094		Flue Box   (Replaces: W10153186)				$ 135.26
2	WP8272747		Shield, Flue   (Replaces: 8272747)				$ 63.86
3	W11379351		Burner Box   (Replaces: 8273036)				$ 55.02
4	WPW10575396		Panel, Side (white-textured)   (Replaces: 8053830)				$ 133.84
4	W10162246		Panel, Side (biscuit-textured)   (Replaces: 8272519)				$ 176.49
4	W11730303		Panel, Side (black-textured)   (Replaces: 8053832)			Immediately	$ 148.35
6	8523249		Brkt, Manifold Mtg		Appelez-nous	-
8	WPW10067840		Screw   (Replaces: W10067840)				$ 6.98
9	WP3196037		Foot, Front   (Replaces: 3196037)				$ 74.67
10	WPW10058460		Foot, Rear   (Replaces: W10058460)			Immediately	$ 7.07
11	WP3195097		Bottom, Oven   (Replaces: 3195097)				$ 213.94
12	WPW10181986		Sensor, Oven   (Replaces: W10181986)			Immediately	$ 96.15
13	8053967		Baffle, Burner				$ 270.82
14	8053969		Shield, Heat				$ 96.89
15	8053968		Shield, Lower		Appelez-nous	-
16	W11818353		Rail, Base   (Replaces: 9760314)				$ 53.71
18	9761517		Clip, Door Mntg				$ 41.24
19	W10877054		Spacer, Door   (Replaces: 9758701)			Immediately	$ 48.05
20	W10222733		Back, Main		Appelez-nous	-
21	W11542153		Seal, Oven   (Replaces: 8522416)			Immediately	$ 45.18
22	8053971		Brace, Main Back				$ 7.82
23	9761448		Retainer, Insul. (right Hand)		Appelez-nous	-
23	9761449		Retainer, Insul. (left Hand)				$ 285.87
24	W11169708		Screw   (Replaces: 3196560)				$ 13.36
25	W11582239		Cord, Power   (Replaces: 9757891)				$ 15.08
26	W10647259		Brkt - Hinge   (Replaces: 9760407)			Immediately	$ 8.39
27	WP9757262		Switch, Door   (Replaces: 9757262)			Immediately	$ 130.00
28	W11594027		Light Socket Assy   (Replaces: 3196701)			Immediately	$ 78.31
29	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
30	WP9761013		Latch, Door   (Replaces: 9761013)				$ 219.74
31	W10078370		Rod, Latch				$ 81.63
32	WPW10107820		Latch-mtr   (Replaces: W10107820)				$ 265.33
33	WPW10114344		Glide, Drawer   (Replaces: W10114344)			Immediately	$ 7.34
35	W10182346		Insulation				$ 77.83
37	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
38	3196152		Screw				$ 8.99
39	3196166		Screw (white)				$ 6.31
39	98008169		Screw (biscuit)   (Replaces: 8281194)		Appelez-nous	-
41	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.04
42	WP98008545		Screw   (Replaces: 3196179)				$ 15.94
44	WP7101P246-60		Screw   (Replaces: 3196177)				$ 6.98
45	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 6.98
46	9757239		Rod, Door Switch Rear Mount				$ 82.60
NI	W11684915		Insulation, Wrap   (Replaces: 8524099)				$ 105.98
NI	W11688737		Insulation, Back   (Replaces: W10180437)				$ 105.20
