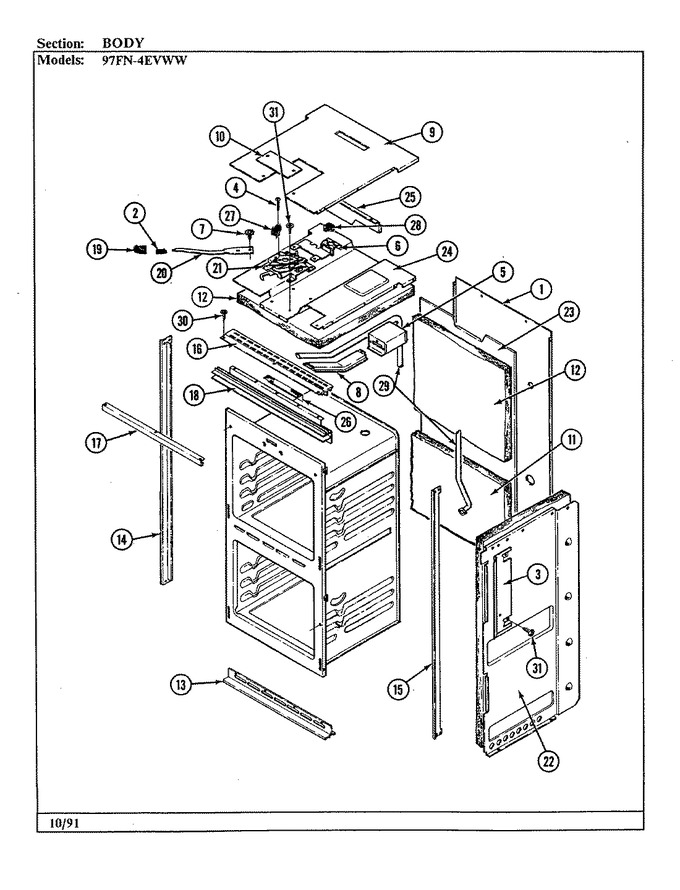

01 - Body
02 - Control Panel
03 - Door (lower)
04 - Door-upper
05 - Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F143-51 | Back, Main | 01 |
|
- | ||||
| 2 | 7112P003-60 | Clip, Latch Handle | 01 |
|
- | ||||
| 3 | 3601F130-51 | Baffle, Side | 01 |
|
- | ||||
| 4 | 7101P035-60 | Screw, Switch | 01 |
|
- | ||||
| 5 | 7208P008-60 | Seal | 01 |
|
- | ||||
| 5 | 4006W046-45 | Box, Vent | 01 |
|
- | ||||
| 5 | 7101P287-60 | Screw, Metal Grounding | 01 |
|
$ 12.03 | ||||
| 6 | 3801F128-45 | Bracket, Hi Limit | 01 |
|
- | ||||
| 7 | WP4159193 | Screw (Replaces: 7101P115-60) | 01 |
|
$ 4.29 | ||||
| 8 | 3818W002-19 | Channel, Vent Assy | 01 |
|
- | ||||
| 9 | 4005F202-51 | Cover, Box | 01 |
|
- | ||||
| 10 | 4005F160-45 | Cover, Lock | 01 |
|
- | ||||
| 11 | 7002P007-60 | Insulation, Botton | 01 |
|
- | ||||
| 12 | 7002P112-60 | Insulation, Top & Back | 01 |
|
- | ||||
| 13 | 7706P075-60 | Extrusion, Bottom (chr) | 01 |
|
- | ||||
| 14 | 7750P033-60 | Extrusion, Side-l | 01 |
|
- | ||||
| 15 | 7750P034-60 | Extrusion, Side-r | 01 |
|
- | ||||
| 16 | 7706P078-60 | Extrusion, Top (wht) | 01 |
|
- | ||||
| 17 | 7756P057-60 | Extrusion, Top Front (wht) | 01 |
|
- | ||||
| 18 | 7756P070-60 | Extrusion, Vent (blk) | 01 |
|
- | ||||
| 19 | 7701P089-60 | Handle, Latch (wht) | 01 |
|
- | ||||
| 20 | 8009P011-60 | Lever, Latch | 01 |
|
- | ||||
| 20 | 7214P020-60 | Tubing, Heat Shrink | 01 |
|
- | ||||
| 21 | 3801F127-51 | Bracket, Door Latch | 01 |
|
- | ||||
| 21 | 8002P072-60 | Latch Assy. (Replaces: 8002P016-60) | 01 |
|
$ 306.52 | ||||
| 21 | 7003P001-60 | Insulator | 01 |
|
- | ||||
| 22 | 2618F055-51 | Panel, Side Right | 01 |
|
- | ||||
| 22 | 2618F056-51 | Panel, Side-lt | 01 |
|
- | ||||
| 23 | 3804F105-51 | Retainer, Rear | 01 |
|
- | ||||
| 24 | 3804F053-51 | Retainer,top | 01 |
|
- | ||||
| 25 | 3604F101-80 | Shield, Air | 01 |
|
- | ||||
| 26 | 3604F048-80 | Shield, Terminal | 01 |
|
- | ||||
| 27 | 7403P007-60 | Switch, Door Lock | 01 |
|
- | ||||
| 28 | 7403P063-60 | Switch, High Limit | 01 |
|
$ 156.41 | ||||
| 29 | 8026P014-60 | Tube, Oven Vent | 01 |
|
- | ||||
| 30 | 7103P051-60 | Nut, Snap | 01 |
|
- | ||||
| 30 | 7103P040-60 | Nut, Snap (wht) | 01 |
|
- | ||||
| 30 | WP7103P114-60 | Nut, Snap (round-wht) (Replaces: 7103P039-60) | 01 |
|
$ 9.89 | ||||
| 30 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 01 |
|
Immediately | $ 12.62 | |||
| 31 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 31 | 5195A018-60 | Harness Door Lock | 01 |
|
- | ||||
| 31 | 7101P082-60 | Screw | 01 |
|
- | ||||
| 31 | 5185A094-60 | Wire Harness | 01 |
|
- |
