01 - Body


02 - Control Panel


03 - Door (lower)


04 - Door-upper


05 - Oven

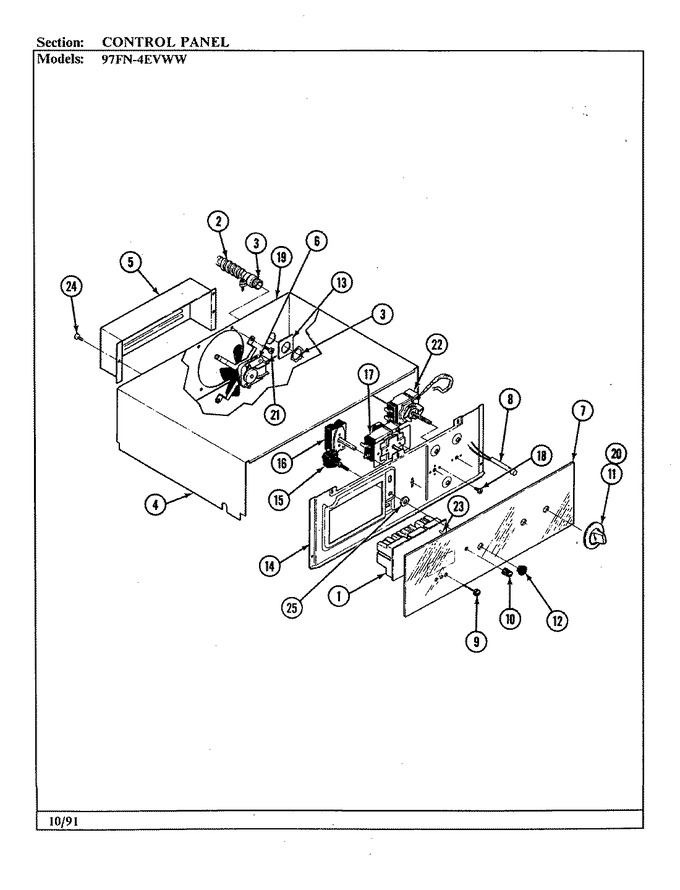

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7601P123-60		Clock	01	Appelez-nous	-
1	7601P197-60		Clock	22	Appelez-nous	-
2	3414P037-44		Conduit, Flexible	01	Appelez-nous	-
3	7417P017-60		Connector, Cable	01			$ 9.81
4	4005F150-51		Cover, Wire	01	Appelez-nous	-
5	4005F262-51		Cover, Fan	01	Appelez-nous	-
6	8008P004-60		Grommet	01	Appelez-nous	-
6	7427P006-60		Fan Assembly	01	Appelez-nous	-
7	7912P073-60		Glass Control	01	Appelez-nous	-
7	8010P050-60		Felt, Disc	01	Appelez-nous	-
8	7414P004-60		Insulator, Terminal	01	Appelez-nous	-
8	5700A236-60		Light, Indicator	01	Appelez-nous	-
9	7711P420-60		Knob, Clock (button-wht)	01	Appelez-nous	-
10	7711P419-60		Knob, Clock (wht)	01	Appelez-nous	-
11	7737P011-60		Knob, Switch (wht)	01	Appelez-nous	-
12	7214P023-60		Sleeve, Switch (wht)	01	Appelez-nous	-
13	3605F131-51		Plate, Reinforcement	01	Appelez-nous	-
14	3605F170-80		Plate, Switch	01	Appelez-nous	-
15	7403P204-60		Switch, Push (wht)	01	Appelez-nous	-
16	7403P023-60		Switch, Selector	01	Appelez-nous	-
17	7003P033-60		Insulation Thermostat	01	Appelez-nous	-
17	7404P039-60		Thermostat, Upper	01	Appelez-nous	-
17	7101P279-60		Screw W/washer	01	Appelez-nous	-
18	7101P280-60		Screw W/washer (blk)	01	Appelez-nous	-
19	3605F164-51		Plate, Conduit	01	Appelez-nous	-
20	7737P011-60		Knob, Switch (wht)	01	Appelez-nous	-
21	7101P079-60		Screw	01	Appelez-nous	-
22	7101P239-60		Screw	01	Appelez-nous	-
22	7404P042-60		Thermostat, Lower	01	Appelez-nous	-
23	8312P017-60		Shaft, Clock	01	Appelez-nous	-
24	WP7101P126-60		Screw   (Replaces: 7101P061-60)	01		Immediately	$ 6.85
25	5140A001-60		Harness Conduit	01	Appelez-nous	-
25	5195A021-60		Harness 9 Pin	01	Appelez-nous	-
25	7103P021-60		Nut, Switch	01	Appelez-nous	-
25	5195A019-60		Wire Harness Control Panel	01	Appelez-nous	-
