New Model Search:

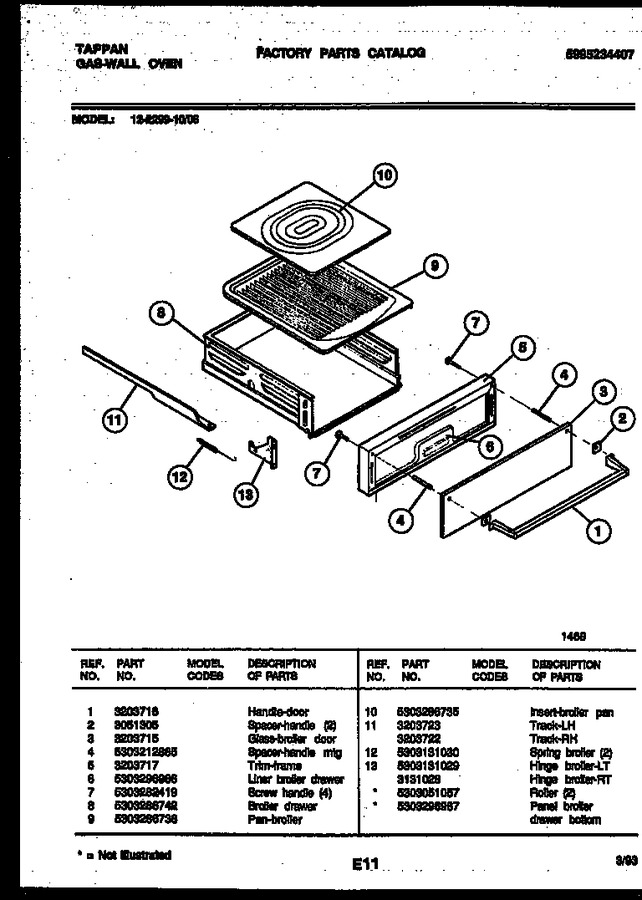

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3203716 | Handle-door |
|
- | |||||
| 2 | 3051305 | Spacer, Handle, (2) |
|
- | |||||
| 3 | 3203715 | Glass-broiler Door |
|
- | |||||
| 4 | 5303212865 | Spacer-handle Mtg |
|
- | |||||
| 5 | 3203717 | Trim-frame |
|
- | |||||
| 6 | 5303296966 | Liner Broiler Drawer |
|
- | |||||
| 7 | 5303282419 | Screw-handle (4) |
|
- | |||||
| 8 | 5303286742 | Broiler Drawer |
|
- | |||||
| 9 | 5303286736 | Pan Broiler |
|
- | |||||
| 10 | 5303286735 | Insert-broiler Pan |
|
- | |||||
| 11 | 3203723 | Track-lh |
|
- | |||||
| 11 | 3203722 | Track-rh |
|
- | |||||
| 12 | 5303131030 | Spring Broiler (2) |
|
- | |||||
| 13 | 5303131029 | Hinge Broiler-lt |
|
- | |||||
| 13 | 3131028 | Hinge Broiler-rt |
|
- | |||||
| *83855 | 5303051057 | Roller (2) |
|
- | |||||
| *83856 | 5303296967 | Panel Broiler Drawer Bottom |
|
- |
