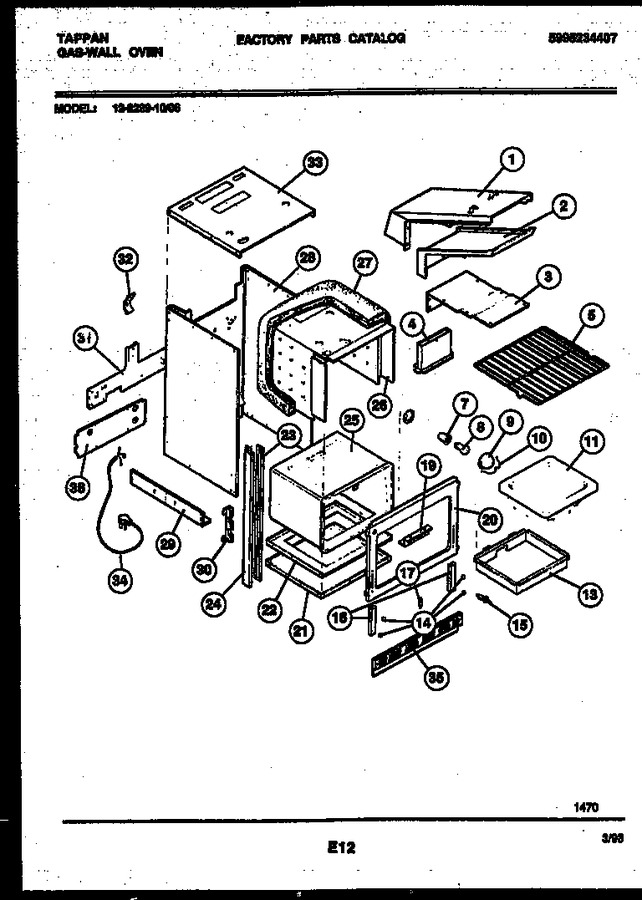

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3204210 | Shield Flue Top |
|
- | |||||
| 2 | 3203725 | Flue |
|
- | |||||
| 3 | 3203686 | Shield - Flue Bottom |
|
- | |||||
| 4 | 3203730 | Flue Adaptor |
|
- | |||||
| 5 | 318345216 | Rack (2) (Replaces: 5303296873) |
|
$ 103.90 | |||||
| 7 | 08011171 | Receptacle |
|
- | |||||
| 8 | 3201908 | Bulb |
|
- | |||||
| 9 | 5304524341 | Lens (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 10 | 3204483 | Retainer-lens |
|
- | |||||
| 11 | 5303296327 | Botton-oven |
|
- | |||||
| 13 | 5303280375 | Box-oven Burner |
|
- | |||||
| 14 | 3203663 | Spacer-rubber |
|
- | |||||
| 15 | 5301314211 | Switch-oven Light |
|
$ 95.29 | |||||
| 16 | 3203688 | Support-oven Front (2) |
|
- | |||||
| 17 | 3019063 | Retainer - Door (2) |
|
- | |||||
| 19 | 3203685 | Shield-vent |
|
- | |||||
| 20 | 5303296866 | Frame-oven |
|
- | |||||
| 21 | 3202447 | Wrapper-base |
|
- | |||||
| 22 | 5303210706 | Shield-insulation, Base |
|
- | |||||
| 23 | 3203665 | Trim Inner-lh |
|
- | |||||
| 23 | 3203664 | Trim Inner-rh |
|
- | |||||
| 24 | 5303280347 | Trim-outer Side |
|
- | |||||
| 25 | 5303296968 | Liner |
|
- | |||||
| 26 | 3202461 | Shield-insulation |
|
- | |||||
| 27 | 5303280377 | Insulation, Oven Bottom |
|
- | |||||
| 27 | 3016319 | Insulation-back |
|
- | |||||
| 27 | 5303210707 | Insulation, Top & Sides |
|
- | |||||
| 28 | 5303210686 | Wrapper-outer Back & Sides |
|
- | |||||
| 29 | 3016278 | Support, Height (2) |
|
- | |||||
| 30 | 3201631 | Channel, Hinge |
|
$ 58.22 | |||||
| 31 | 3203703 | Bracket Safety Valve |
|
- | |||||
| 32 | 3016281 | Spring, Oven |
|
- | |||||
| 33 | 3203690 | Wrapper, Top |
|
- | |||||
| 34 | 3203699 | Cord Power |
|
- | |||||
| 35 | 3202237 | Trim-base |
|
- | |||||
| 36 | 3203678 | Cover-wire |
|
- | |||||
| *83860 | 3203680 | Cover-capillary Tube |
|
- | |||||
| *83860 | 3201910 | Clip-thermo Bulb |
|
- | |||||
| *83861 | 3201632 | Spacer-oven |
|
- | |||||
| *83861 | 19100180204 | Diagram Wiring (not For Purchase) |
|
- |
