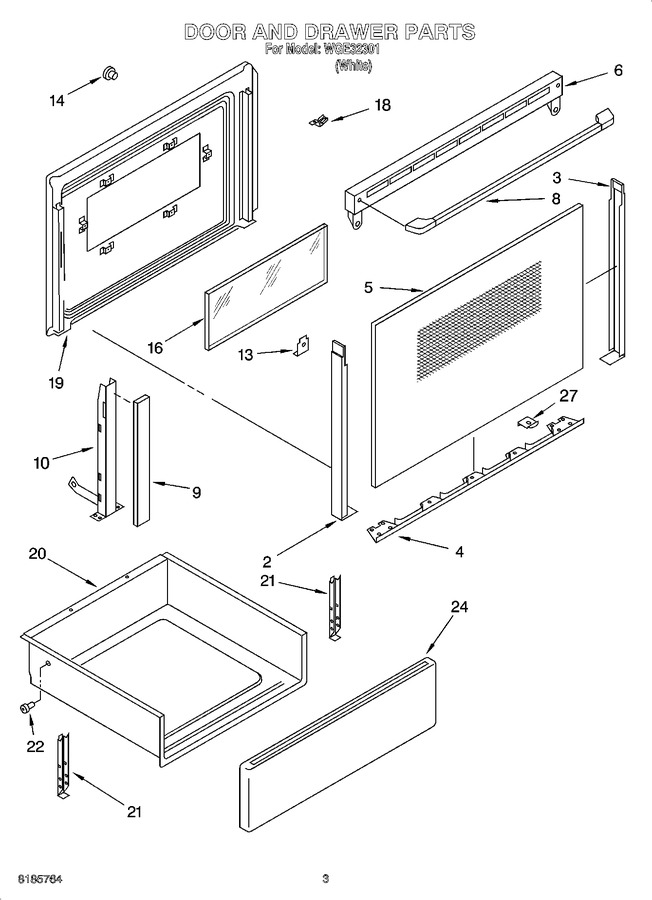

01 - Cooktop Parts


02 - Control Panel Parts


03 - Door And Drawer Parts


04 - Oven Chassis Parts


05 - Oven Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	9782003PW		Trim, Door-left		Appelez-nous	-
3	9782004PW		Trim, Door-right		Appelez-nous	-
4	9780265		Screw (4) 10 X 3/8		Appelez-nous	-
4	9781209PW		Trim, Door Bottom		Appelez-nous	-
5	WP9781782PW		Glass, Door Front   (Replaces: 9781782PW)				$ 142.92
6	9753498GW		Vent, Door		Appelez-nous	-
6	9780265		Screw (2)		Appelez-nous	-
6	WPW10001180		Screw (2)   (Replaces: 9781072)				$ 7.23
6	9781659		Gasket, Door Vent		Appelez-nous	-
8	9751136PW		Handle, Door		Appelez-nous	-
8	WPW10001180		Screw (2)   (Replaces: 9781072)				$ 7.23
9	9781449		Gasket, Door Glass		Appelez-nous	-
10	WP90296		Clip   (Replaces: 90296)				$ 7.07
10	9782032		Hinge, Door R Or L		Appelez-nous	-
10	9780265		Screw (4) 10 X 3/8		Appelez-nous	-
13	9781613		Retainer, Glass		Appelez-nous	-
13	9780271		Screw (2) 8 X 1/4		Appelez-nous	-
14	238614		Bumper, Door   (Replaces: 9780771)				$ 72.68
16	9781651		Glass, Clear		Appelez-nous	-
18	9750676		Retainer, Panel		Appelez-nous	-
19	9781599GM		Liner, Door		Appelez-nous	-
20	9780583		Drawer & Roller		Appelez-nous	-
21	9750169		Bracket, Drawer		Appelez-nous	-
21	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
22	814229		Support, Roller   (Replaces: 423713)			Immediately	$ 51.23
24	9780272		Screw (4) 10 X 1/2		Appelez-nous	-
24	9782108PW		Front, Drawer		Appelez-nous	-
27	9781502		Spacer, Door (2)		Appelez-nous	-
