SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Door And Drawer Parts


04 - Oven Chassis Parts


05 - Oven Parts, Miscellaneous Parts

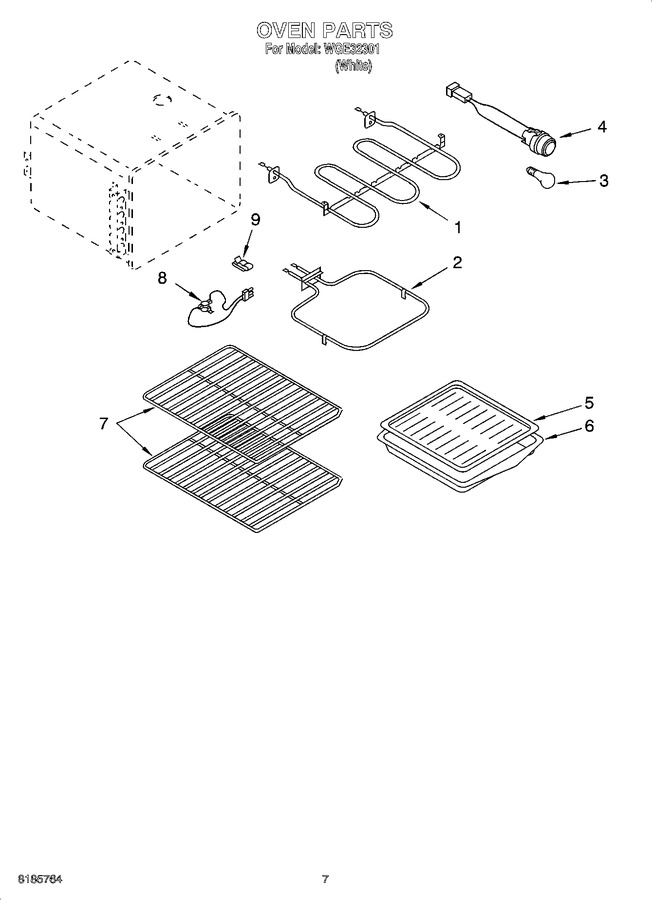

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9780993		Element, Broil		Appelez-nous	-
1	9781509		Screw, (2) 8 X 3/8		Appelez-nous	-
2	UB413		Element, Bake   (Replaces: 9750213)			Immediately	$ 47.24
2	9781509		Screw, Elements 8-32 X 3/8		Appelez-nous	-
2	340184		Screw, (2) 10 X 1-1/2				$ 12.10
3	40A15		Bulb, Oven   (Replaces: 8935)			Immediately	$ 1.98
4	9750962		Light Assembly		Appelez-nous	-
5	4396923		Grill, Broiler   (Replaces: 420104GM)			Immediately	$ 52.04
6	4396923		Pan, Broiler   (Replaces: 420101GM)			Immediately	$ 52.04
7	9750498		Rack, Standard		Appelez-nous	-
8	3189942		Safety Therm.				$ 80.85
8	9780271		Screw, (1) 8 X 1/4		Appelez-nous	-
9	98005642		Clip, Thermo   (Replaces: 313382)			Immediately	$ 74.64
	9752848		Anti-tip Kit		Appelez-nous	-
	350956		Paint, Pressurized Spray (12 Oz.) (almond)				$ 46.30
	9753252		Harness, Wire (dco/analog No Auto Sw)		Appelez-nous	-
	9751014		Harness, Wire (cooktop)		Appelez-nous	-
	9752771		Harness, Wire (cooktop Control)		Appelez-nous	-
	PT600		Power Cord   (Replaces: 9781287)			Immediately	$ 44.31
	9750984		Wire Hanger Lead Wires		Appelez-nous	-
	9751003		Ground Wire		Appelez-nous	-
	WPW10339879		Wire Tie   (Replaces: 20082084)				$ 7.11
	9781291		Harness, Wire Outlet		Appelez-nous	-
	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
	WP681414		Screw, Ground   (Replaces: 690989)			Immediately	$ 7.07
	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
	242831		Wire (14 Ga. 200 C Red)				$ 342.23
	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	285006		Paint, Pressurized Spray 12 Oz.) (superior Black)			Immediately	$ 51.34
	350942		Paint, Pressurized Spray (12 Oz.) (primer, White)   (Replaces: 206922)				$ 80.69
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	978883		Paint, Bulk (1 Qt.) (almond (uncut))		Appelez-nous	-
	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 74.76
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
	261582		Grease		Appelez-nous	-
	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
	LIT9752777		Literature Parts (installation Instructions)		Appelez-nous	-
	LIT9754174		Literature Parts (use & Care Guide)		Appelez-nous	-
	CERAMABRYTE		Glass Cleaner   (Replaces: 814009)			Immediately	$ 9.95
	LIT9752767		Literature Parts (wiring Diagram)		Appelez-nous	-
	LIT9752776		Literature Parts (template, Anti-tip)		Appelez-nous	-
	LIT9781875		Literature Parts (service Inst. Cac)		Appelez-nous	-
	9753301		Harness, Wire (oven Thermostat)		Appelez-nous	-
