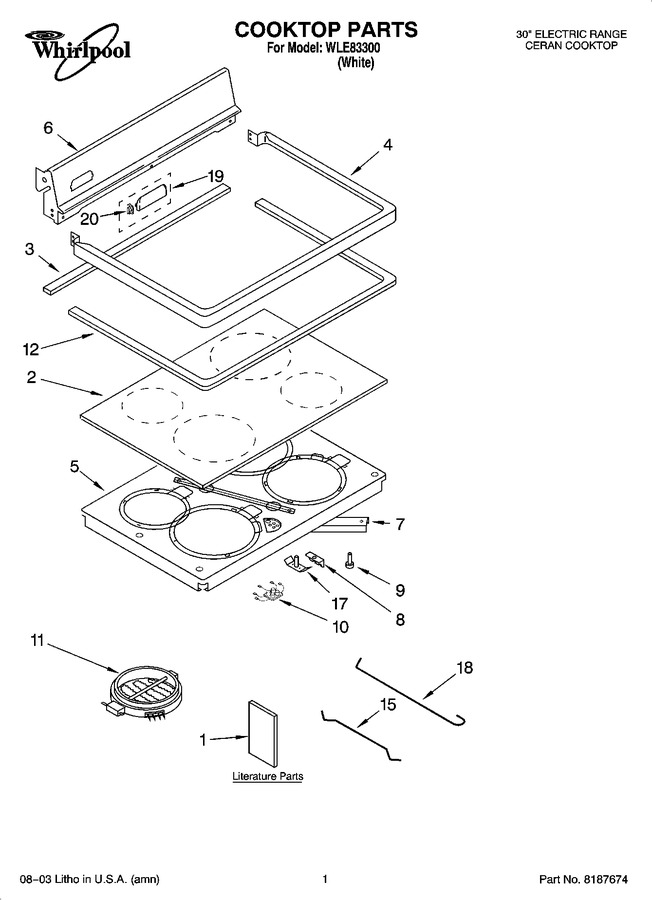

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT9752776		Literature Parts (template, Anti-tip)		Appelez-nous	-
1	LIT9752768		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT9782476		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT9782477		Literature Parts (service Instr.)		Appelez-nous	-
2	9781583		Cooktop, Ceran Front & Sides		Appelez-nous	-
3	9781614		Rear Gasket				$ 47.02
4	9750456PW		Frame, Cooktop		Appelez-nous	-
4	3149333		Screw (4) 10 X 1/2				$ 5.33
5	9781549		Support, Element		Appelez-nous	-
6	3149333		Screw (4) 10 X 1/2				$ 5.33
6	9752337GW		Back Splash		Appelez-nous	-
7	9781553		Brace, Support		Appelez-nous	-
7	9780272		Screw (2) 10 X 3/4``		Appelez-nous	-
8	423248		Screw, (4) 10 X 3/4``		Appelez-nous	-
8	9753691		Support Clips (4)		Appelez-nous	-
9	238614		Bumper-white (4)   (Replaces: 9750969)				$ 72.68
10	9781937		Hot Light		Appelez-nous	-
11	W10823699		Element, Surface (1500w - Lr)   (Replaces: 8523697)			Immediately	$ 145.67
11	W10823698		Element, Surface (1800w - Rf)   (Replaces: 8523696)			Immediately	$ 175.61
11	W10823697		Element, Surface (2200w - Rr)   (Replaces: 8523694)				$ 326.21
11	W10823696		Element, Surface (2500w Lf)   (Replaces: 8523692)			Immediately	$ 192.83
12	WP9780939		Gasket, Cooktop   (Replaces: 9780939)			Immediately	$ 60.83
15	9781460		Rod, Small Ceran Element		Appelez-nous	-
17	WP9781235		Speed Nut   (Replaces: 9781235)				$ 10.76
18	9781459		Rod, Large Ceran Element		Appelez-nous	-
19	9753040CW		Cover Vent		Appelez-nous	-
20	3149190		Clip, Mounting		Appelez-nous	-
