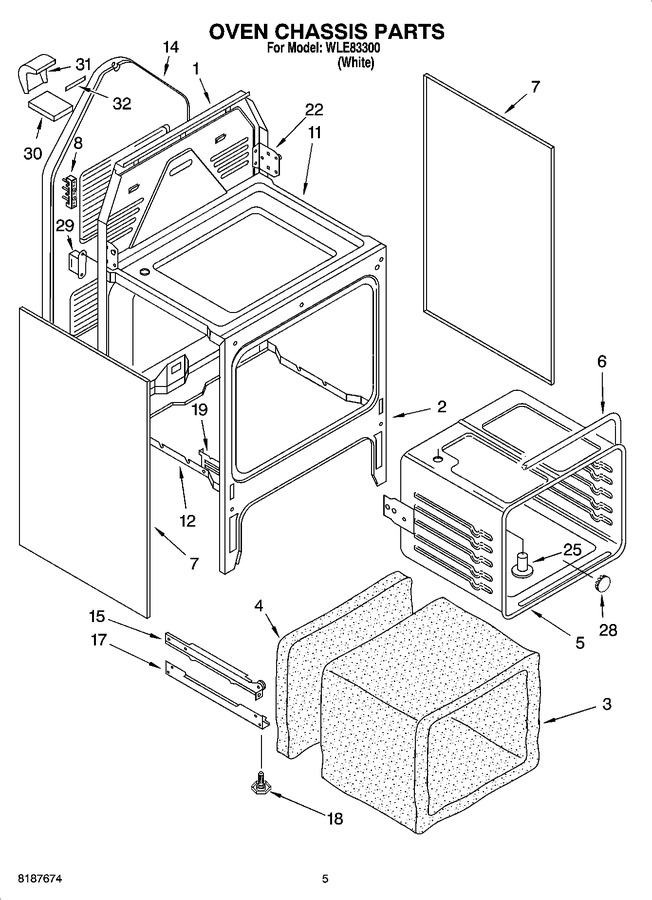

04 - Oven Chassis Parts


05 - Oven Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9750146		Main Chassis, Back		Appelez-nous	-
2	9750477GM		Chassis, Front		Appelez-nous	-
3	9754001		Insulation, Wrap		Appelez-nous	-
4	9754010		Insulation, Rear		Appelez-nous	-
5	9781294GM		Oven Liner		Appelez-nous	-
6	9750691		Gasket, Oven		Appelez-nous	-
7	9781907PW		Oven, Side Panel		Appelez-nous	-
7	9780265		Screw, (4)		Appelez-nous	-
8	98884		Screw		Appelez-nous	-
8	WP8203546		Block, Terminal   (Replaces: 258076)			Immediately	$ 27.12
8	WP112432		Nut, (3)   (Replaces: 112432)				$ 7.16
11	9780275		Screw, (2) 8 X 3/8		Appelez-nous	-
11	9780265		Screw (7) 10 X 3/8		Appelez-nous	-
11	9750478		Burner Box		Appelez-nous	-
12	9780265		Screw (9) 10 X 3/8		Appelez-nous	-
12	9750142		Oven Bottom		Appelez-nous	-
14	9750150		Panel, Rear		Appelez-nous	-
15	9750223		Drawer Rail, Left		Appelez-nous	-
15	9750224		Drawer Rail, Right		Appelez-nous	-
15	9780265		Screw, (2) 8 X 3/8		Appelez-nous	-
17	9780265		Screw, (8) 10 X 3/8		Appelez-nous	-
17	9750147		Bottom Rail (2)		Appelez-nous	-
18	WPW10058460		Foot, (4)   (Replaces: 312701)			Immediately	$ 7.07
19	9780265		Screw, (2) 8 X 3/8		Appelez-nous	-
19	9782005		Receiver, Hinge (r Or L)		Appelez-nous	-
22	9750258		Hinge, Cktp.-left		Appelez-nous	-
22	9780265		Screw (4) 10 X 3/8		Appelez-nous	-
22	9750416		Hinge, Cktp.-right		Appelez-nous	-
25	9750391		Vent Tube		Appelez-nous	-
28	9780578		Plug, Button		Appelez-nous	-
29	9780265		Screw		Appelez-nous	-
29	9780881		Ballast		Appelez-nous	-
30	9750393		Vent, Cover		Appelez-nous	-
31	9750394		Vent Back		Appelez-nous	-
32	9750767		Gasket, Vent		Appelez-nous	-
