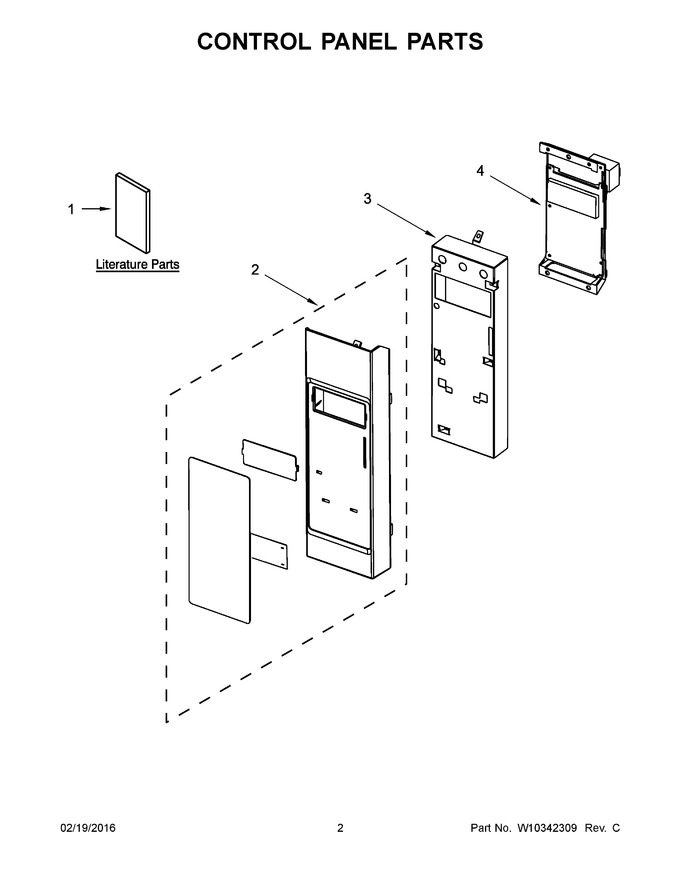

02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10238252 | Installation Instructions |
|
- | |||||
| 2 | W10315772 | Panel Asy, Control Includes Lens And Embrane Switch (white) |
|
- | |||||
| 3 | W10247749 | Bracket, Control |
|
$ 145.56 | |||||
| 4 | W10211457 | Microcomputer |
|
$ 311.83 | |||||
| 1A | W10182518 | Use And Care Guide |
|
- | |||||
| 1B | W10292071 | Cook Guide Label (english) |
|
- | |||||
| 1C | W10303764 | Tech Sheet |
|
- | |||||
| 2A | W10315771 | Panel Asy, Control Includes Lens And Embrane Switch (black) |
|
- | |||||
| 2B | W10315775 | Panel Asy, Control Includes Lens And Embrane Switch (universal Silver) |
|
- | |||||
| 2C | W10315773 | Panel Asy, Control Includes Lens And Embrane Switch (stainless) |
|
- |
