View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:

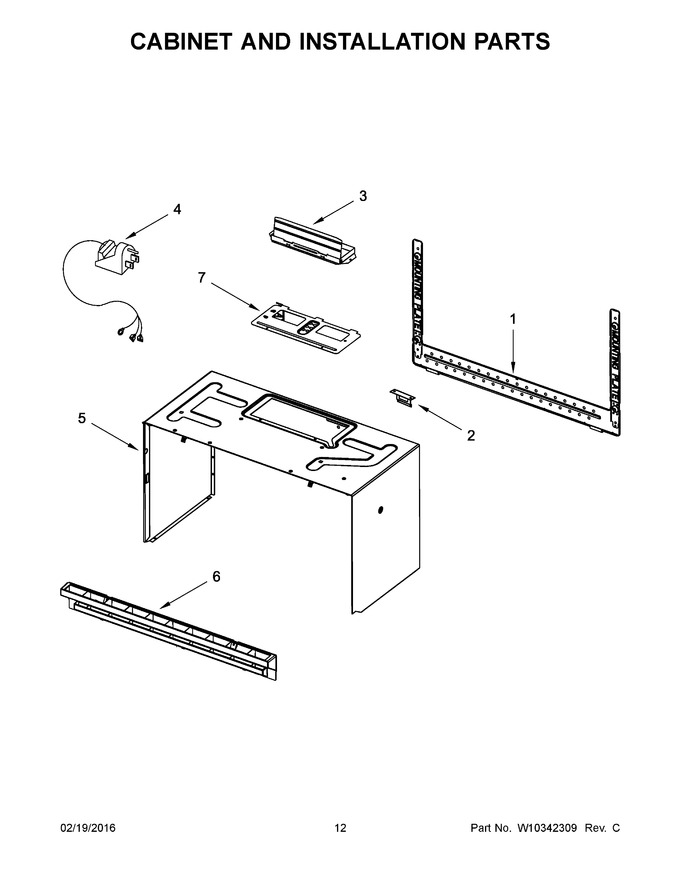

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10269225 | Plate, Mounting (Replaces: W10269225) |
|
$ 69.20 | |||||
| 2 | 8206385 | Support, Wire Clip |
|
$ 31.89 | |||||
| 3 | W10843943 | Damper (Replaces: 8206442) |
|
Immediately | $ 65.74 | ||||
| 4 | W10708076 | Cord, Power (Replaces: W10269470) |
|
$ 18.48 | |||||
| 5 | W10269453 | Case, Outer (white) |
|
$ 117.00 | |||||
| 6 | W10245217 | Grille, Vent (white) |
|
$ 90.84 | |||||
| 7 | W10210832 | Cover, Hood Fan Motor |
|
$ 6.68 | |||||
| 5A | W10269454 | Case, Outer (black) |
|
$ 126.39 | |||||
| 6A | W10245218 | Grille, Vent (black) |
|
$ 89.96 | |||||
| 6B | W10315776 | Grille, Vent (universal Silver) |
|
- | |||||
| 6C | W10245216 | Grille, Vent (stainless) |
|
$ 124.00 | |||||
| NI | W10821385 | Miscellaneous Parts, Installation, Hardware (Replaces: 8206614) |
|
Immediately | $ 88.90 | ||||
| NI | 8205871 | Miscellaneous Parts, Template, Upper |
|
$ 24.66 | |||||
| NI | W10138802 | Miscellaneous Parts, Screw |
|
$ 9.80 | |||||
| NI | W10333875 | Miscellaneous Parts, Harness, Main |
|
- | |||||
| NI | W10539841 | Miscellaneous Parts, Headlamp/tt Wire Assembly (Replaces: W10269479) |
|
$ 17.98 | |||||
| NI | W10539842 | Miscellaneous Parts, Harness, Magnetron To High Voltage Transformer (Replaces: W10163436) |
|
$ 14.31 | |||||
| NI | W10470168 | Miscellaneous Parts, Harness Wire, Ntc (Replaces: W10163439) |
|
$ 36.63 | |||||
| NI | 8206415 | Miscellaneous Parts, H.v. Wire Assembly |
|
$ 39.87 | |||||
| NI | W10107760 | Miscellaneous Parts, Ground Wire, Filter (for Stainless Model Only) |
|
- | |||||
| NI | W10163438 | Miscellaneous Parts, Ground Wire Assembly |
|
- |
