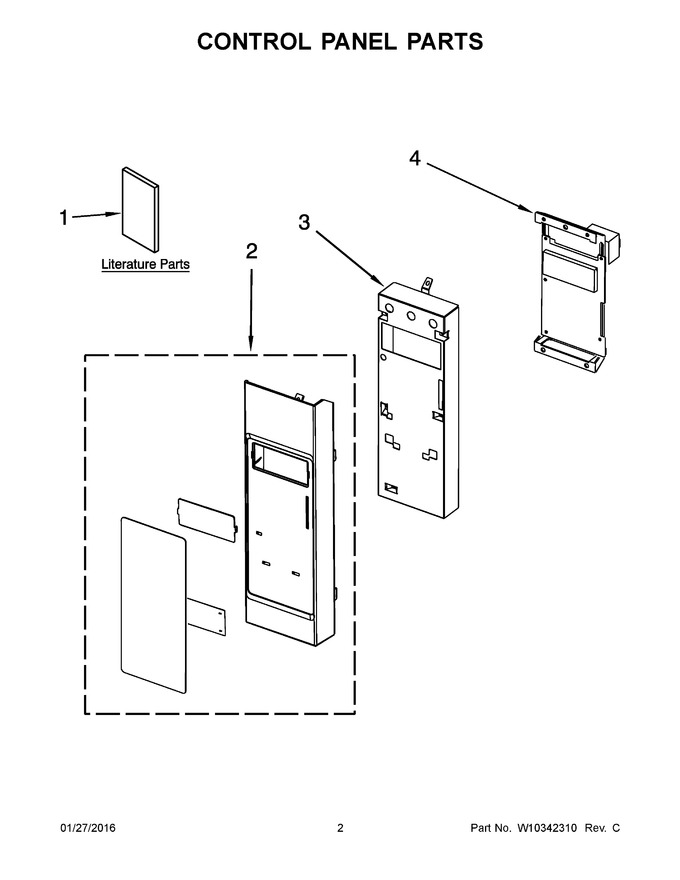

02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10238252 | Installation Instructions |
|
- | |||||
| 2 | W10247756 | Panel Asy, Control Includes Lens And Membrane Switch (white) |
|
- | |||||
| 3 | W10247749 | Bracket, Control |
|
$ 145.56 | |||||
| 4 | W10216347 | Microcomputer |
|
$ 316.68 | |||||
| 1A | W10182518 | Use And Care Guide |
|
- | |||||
| 1B | W10197637 | Cook Guide Label |
|
- | |||||
| 1C | W10303767 | Tech Sheet, Slim |
|
- | |||||
| 2A | W10247752 | Panel Asy, Control Includes Lens And Membrane Switch (black) |
|
- | |||||
| 2B | W10247759 | Panel Asy, Control Includes Lens And Membrane Switch (biscuit) |
|
- | |||||
| 2C | W10286605 | Panel Asy, Control Includes Lens And Membrane Switch (stainless) |
|
- |
