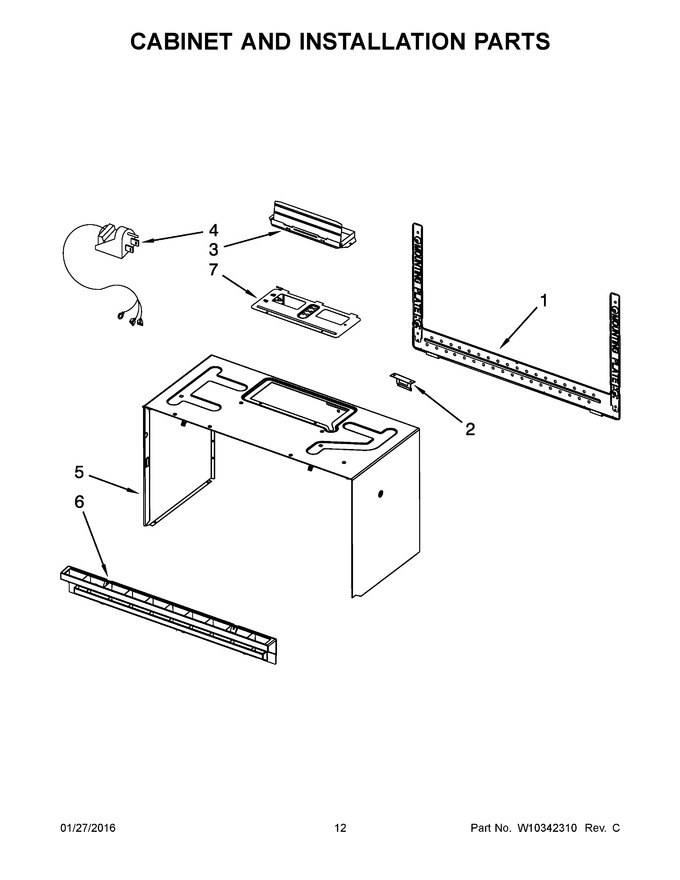

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10269225		Plate, Mounting   (Replaces: W10269225)				$ 69.20
2	8206385		Support, Wire Clip				$ 31.89
3	W10843943		Damper   (Replaces: 8206442)			Immediately	$ 65.74
4	W10708076		Cord, Power   (Replaces: W10269470)				$ 18.48
5	W10269453		Case, Outer (white)				$ 117.00
6	W10245217		Grille, Vent (white)				$ 90.84
7	W10210832		Cover, Hood Fan Motor				$ 6.68
5A	W10269454		Case, Outer (black)				$ 126.39
5B	W10316102		Case, Outer (biscuit)		Appelez-nous	-
6A	W10245218		Grille, Vent (black)				$ 89.96
6B	W10247768		Grille, Vent (biscuit)		Appelez-nous	-
6C	W10245216		Grille, Vent (stainless)				$ 124.00
NI	8205948		Miscellaneous Parts, Hardware, Installation				$ 23.06
NI	8205871		Miscellaneous Parts, Template, Upper				$ 24.66
NI	WP8169704		Miscellaneous Parts, 1/4-20x3" Panhead Screw   (Replaces: 8169704)			Immediately	$ 10.07
NI	W10333875		Miscellaneous Parts, Harness, Main		Appelez-nous	-
NI	W10539842		Miscellaneous Parts, Harness, Magnetron To High Voltage Transformer   (Replaces: W10163436)				$ 14.31
NI	W10539841		Miscellaneous Parts, Headlamp/tt Wire Assembly   (Replaces: W10269479)				$ 17.98
NI	8206415		Miscellaneous Parts, H.v. Wire Assembly				$ 39.87
NI	W10470168		Miscellaneous Parts, Harness Wire, Ntc   (Replaces: W10163439)				$ 36.63
NI	W10163438		Miscellaneous Parts, Ground Wire Assembly		Appelez-nous	-
NI	W10107760		Miscellaneous Parts, Ground Wire, Filter (for Stainless Model Only)		Appelez-nous	-
