SELECT A DIAGRAM

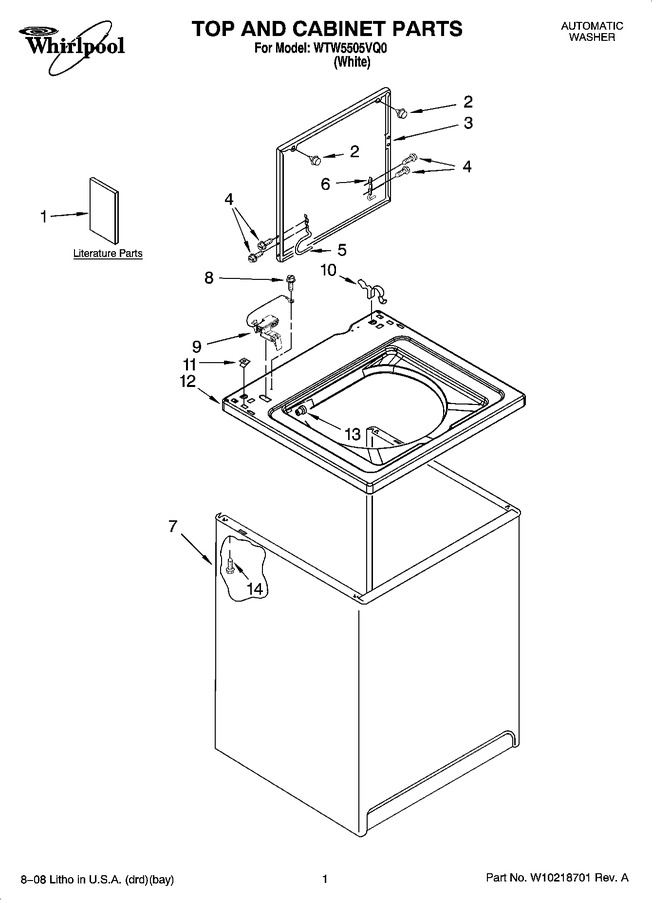

01 - Top And Cabinet Parts


02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10062854		Energy Guide		Appelez-nous	-
1	W10114626		Wiring Diagram		Appelez-nous	-
1	4313896		Manual, Washer				$ 33.26
1	W10200331		Installation Instructions (english/french)		Appelez-nous	-
1	W10200662		Installation Instructions (spanish)		Appelez-nous	-
1	W10200814		Feature Sheet (english/french)		Appelez-nous	-
1	W10200815		Feature Sheet (spanish)		Appelez-nous	-
1	W10200828		Use & Care Guide (english/french)		Appelez-nous	-
1	W10200829		Use & Care Guide (spanish)		Appelez-nous	-
2	WP9724509		Bumper, Lid (2)   (Replaces: 9724509)			Immediately	$ 7.14
3	WPW10193857		Lid   (Replaces: 8541774)				$ 321.04
4	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: W10119872)			Immediately	$ 6.47
5	8318088		Hinge, Lid (l.h.)		Appelez-nous	-
6	WP91770		Hinge, Lid (r.h.)   (Replaces: 91770)				$ 24.71
7	63128		Cabinet		Appelez-nous	-
8	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 6.26
9	WP8318084		Switch, Lid   (Replaces: 8318084)			Immediately	$ 35.84
10	WP62780		Clip, Top & Cabinet & Rear Panel (2)   (Replaces: 62780)			Immediately	$ 7.02
11	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 6.65
12	8541621		Top		Appelez-nous	-
13	WP21258		Bearing, Lid Hinge (2)   (Replaces: 21258)			Immediately	$ 6.87
14	WP3390631		Screw, 10-16 X 3/8 (4)   (Replaces: 3390631)				$ 7.04

    View Diagram in Separate Window       Print Part List
