SELECT A DIAGRAM

01 - Top And Cabinet Parts


02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts

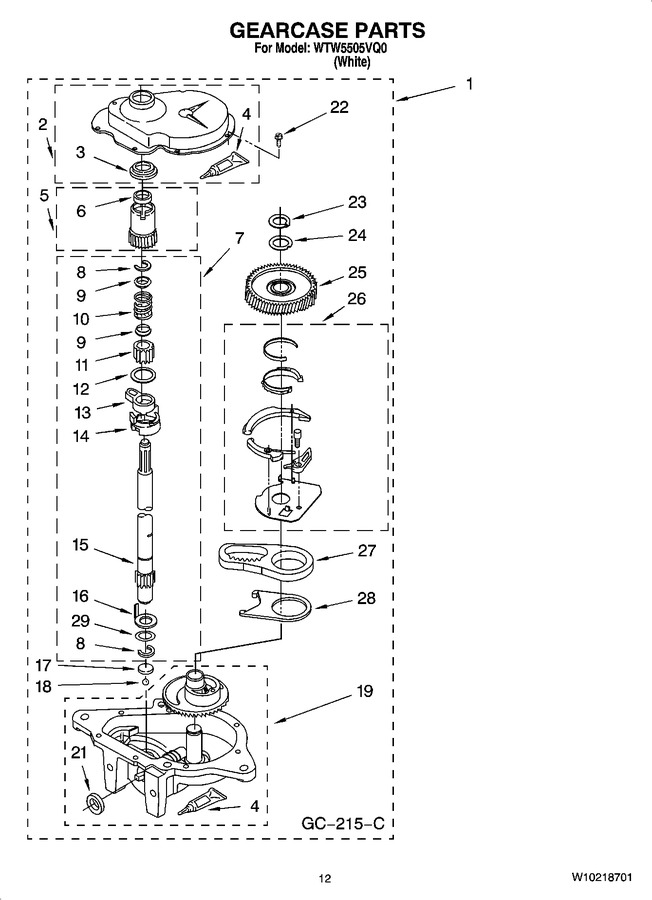

08 - Gearcase Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3360629		Gearcase (complete)   (Replaces: 3360630)			Immediately	$ 422.22
2	285202		Cover, Gearcase		Appelez-nous	-
3	WP3349985		Seal, Gearcase Cover   (Replaces: 3349985)			Immediately	$ 23.59
4	WP285195		Sealer, Gasket (20 Fl. Oz.) (6 Ml)   (Replaces: 285195)				$ 93.95
5	3360629		Pinion, Spin (includes Illus. 25)   (Replaces: 63320)			Immediately	$ 422.22
6	WP356427		Seal, Spin Pinion   (Replaces: 356427)			Immediately	$ 6.47
7	WP389387		Shaft, Agitator (complete)   (Replaces: 389387)				$ 242.73
8	90369		Ring, Retaining (2)				$ 5.04
9	62677		Retainer, Spring				$ 6.25
10	62676		Spring, Agitate				$ 56.99
11	WP389387		Gear, Agitate (includes 15 And 29)   (Replaces: 63273)				$ 242.73
12	62619		Washer, Agitate Gear				$ 12.11
13	WP389387		Cam Follower (includes 14)   (Replaces: 62580)				$ 242.73
14	WP389387		Cam, Agitate (includes 13)   (Replaces: 62581)				$ 242.73
15	WP389387		Shaft, Agitator (includes 11 And 29)   (Replaces: 285509)				$ 242.73
16	62618		Washer, Cam Thrust		Appelez-nous	-
17	285205		Bearing, Thrust   (Replaces: 16018)				$ 6.77
18	285205		Ball, Bearing   (Replaces: 85529)				$ 6.77
19	389230		Bottom And Pinion, Gearcase		Appelez-nous	-
21	285352		Seal, Thrust Plug			Immediately	$ 38.03
22	WP3351614		Screw, Gearcase Cover, Mounting (8) (10-24 X 3/8)   (Replaces: 3351614)			Immediately	$ 6.26
23	3362552		Ring, Retaining		Appelez-nous	-
24	285735		Washer Kit, Thrust		Appelez-nous	-
25	3360629		Gear, Spin   (Replaces: 62570)			Immediately	$ 422.22
26	388253A		Neutral Assembly   (Replaces: 388253)			Immediately	$ 52.86
27	3360629		Rack, Connecting   (Replaces: 3349296)			Immediately	$ 422.22
28	3360629		Actuator, Shift   (Replaces: 62621)			Immediately	$ 422.22
29	WP388815		Washer, Intermediate   (Replaces: 388815)				$ 7.02
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	285452A		Hose Screen (package Of 2)			Immediately	$ 8.31
	285208		Lubricant (use Only In Brake Shoe Assembly On Roller An D Pin)				$ 41.86
	350572		Oil, Gearcase (16 Oz.)			Immediately	$ 82.45
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350938		Paint, Pressurized Spray(12 Oz.) (primer, Gray)		Appelez-nous	-
	8212545RP		Inlet Hoses, 5 Ft. (one Red Hose & One Blue Hose W/straight Ends &4 Rubber Washers)			Immediately	$ 51.28
	8212656RP		Inlet Hoses, 10 Ft (two Black Hoses W/straight Ends & 4 Rubber Washers)			Immediately	$ 42.33
	8212641RP		Inlet Hoses, 5 Ft. (two Black Hoses W/straight Ends &4 Rubber Washers)			Immediately	$ 35.16
	8212546RP		Inlet Hoses, 4 Ft. (two Black Hoses W/straight Ends & 4 Rubber Washers)			Immediately	$ 21.92
	40922		Drain Hose Extension Kit   (Replaces: 280131)				$ 58.09
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	WP285195		Sealer, Gasket (20 Fl. Oz.) (6 Ml)   (Replaces: 285195)				$ 93.95
	8212638RP		Inlet Hoses, 6 Ft. (two Black Hoses W/ One Straight End & One 90 Degree End & 4 Rubber Washers)   (Replaces: 8212637RP)			Immediately	$ 66.14
	285448A		Hose Washers (package Of 4)			Immediately	$ 7.07
	8212638RP		Inlet Hoses, 6 Ft. (two Braided Ho Ses W/ One St Raight End & One 90 Degree End & 4 Rubber Washers)			Immediately	$ 66.14
	8212487RP		Inlet Hoses, 5 Ft. (two Braided Hoses W/straight Ends & 4 Rubber Washers)			Immediately	$ 56.21
	280130		Drain Hose Adapter Kit		Appelez-nous	-
	280129A		Siphon Break Kit   (Replaces: 280129)				$ 100.54
	367031		Drain Protector		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
