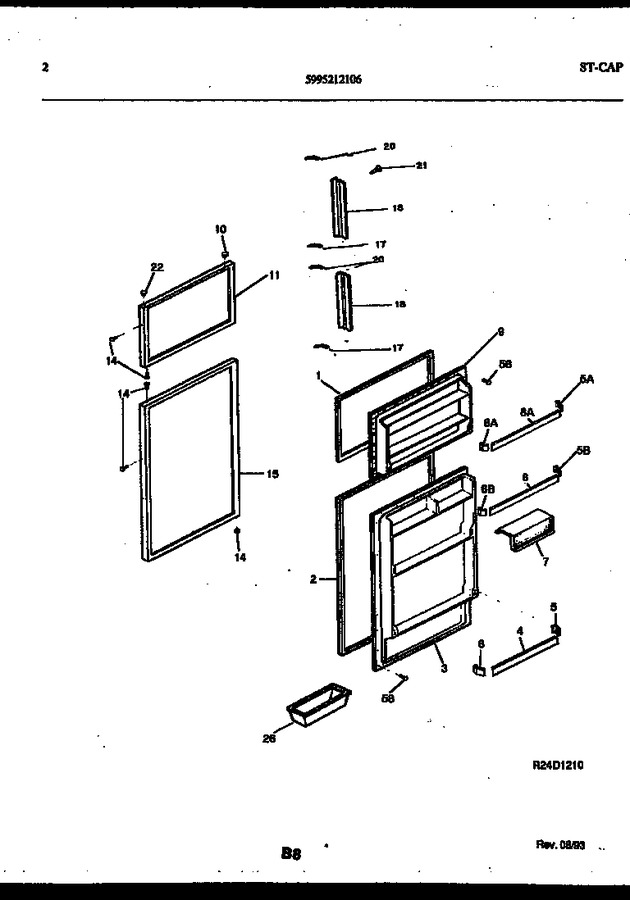

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001304 | Gasket-frzr Door, Magnetic |
|
- | |||||
| 2 | 5303017373 | Gasket-refr Door, Magnetic |
|
- | |||||
| 3 | 5303281227 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 215366002 | Rack-door (Replaces: 5303280367) |
|
Immediately | $ 65.83 | ||||
| 5 | 3206150 | Support, Door Rack, Rh |
|
$ 12.58 | |||||
| 6 | 3206151 | Support-door Rack, Lh |
|
- | |||||
| 7 | 5303276149 | Door-dairy |
|
- | |||||
| 8 | 5303280621 | Rack-door |
|
- | |||||
| 9 | 5303276335 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5303001308 | Plug-button, Almond, Hinge Brg Hole |
|
- | |||||
| 11 | 5303916965 | Panel-frzr Door, Almond |
|
- | |||||
| 14 | 5308000181 | Plug-button, Almond, Handle/dr Stop |
|
- | |||||
| 15 | 5303916980 | Panel-refr Door, Almond |
|
- | |||||
| 17 | 5308010238 | Handle End |
|
- | |||||
| 18 | 5308009875 | Handle-door, Teakwood Vinyl, Refr/frzr, (2) |
|
- | |||||
| 20 | 5308010239 | Handle End |
|
- | |||||
| 21 | 5308013645 | Screw-handle Mtg, 8 Cr Truss Hd, 10(d) X 1/2 |
|
- | |||||
| 22 | 3206153 | Bearing-hinge (8) |
|
- | |||||
| 26 | 3204522 | Container-egg |
|
$ 98.33 | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| 5A | 3206165 | Support-door Rack, Rh |
|
Immediately | $ 8.19 | ||||
| 5B | 3206161 | Support-door Rack, Rh |
|
- | |||||
| 6A | 3206166 | Support-door Rack, Lh |
|
Immediately | $ 9.93 | ||||
| 6B | 3206162 | Support-door Rack, Lh |
|
- | |||||
| 8A | 5303280622 | Rack-door |
|
- |
