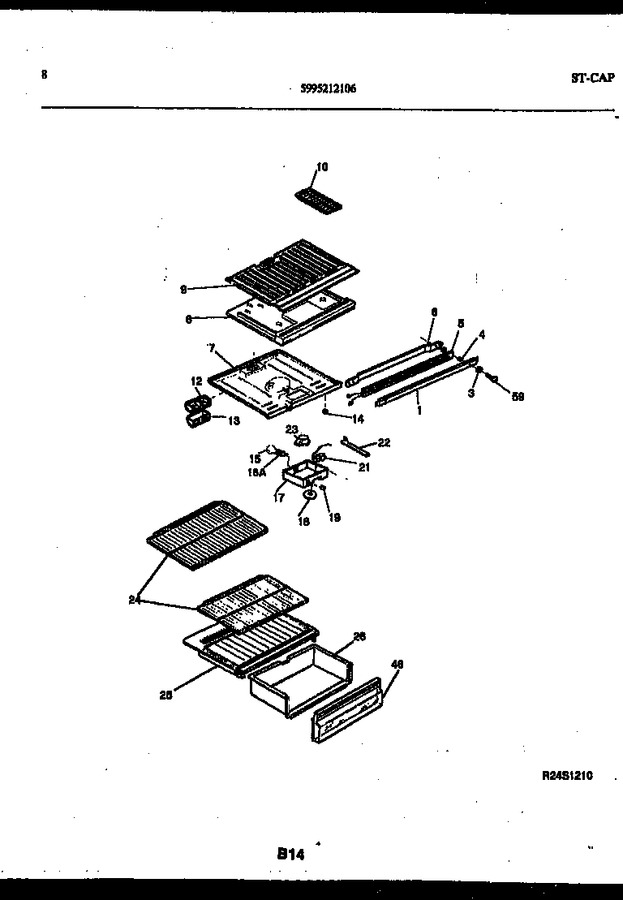

02 - Door Parts


03 - Cabinet Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3206125		Mullion, Almond		Appelez-nous	-
3	5308003607		Washer, No. 10 Steel, 7/23 X 7/16 Od				$ 1.00
4	5303200464		Spacer, Mullion Mtg, (2)		Appelez-nous	-
5	3206120		Heater-mullion		Appelez-nous	-
6	5308003604		Strap, Mullion Mtg		Appelez-nous	-
7	3206128		Top Panel-refr		Appelez-nous	-
8	3206131		Divider, Styrofoam		Appelez-nous	-
9	3206132		Bottom Panel-freezer		Appelez-nous	-
10	5303001324		Tray-ice, Plastic		Appelez-nous	-
12	5308014667		Deflector, Air		Appelez-nous	-
13	5303001448		Cover-air Deflector		Appelez-nous	-
14	5309918806		Switch, Light			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp		Appelez-nous	-
17	3206130		Box-control		Appelez-nous	-
18	5303209251		Knob-temp Control		Appelez-nous	-
19	3206129		Switch-energy Saver		Appelez-nous	-
21	5303018894		Control-temperature		Appelez-nous	-
22	3018891		Housing, Cont Cap Tube		Appelez-nous	-
23	215846602		Timer   (Replaces: 5300187484)			Immediately	$ 28.20
24	3206099		Shelf-sliding, Refr, (2)		Appelez-nous	-
25	5303276242		Cover-crisper Pan		Appelez-nous	-
26	3206107		Pan-crisper		Appelez-nous	-
46	3206106		Front-crisper Pan, Full		Appelez-nous	-
59	3206134		Screw-hng/mull Mtg,acorn Hx Wsh Hd,10-24(23)x1		Appelez-nous	-
12A	5303001449		Seal-air Deflector (non-illustrated)				$ 2.12
12B	5303200590		Extension, Air Deflector, With Insulation (non-illustrated)		Appelez-nous	-
16A	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
17A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
21A	5303001260		Screw				$ 6.73
23A	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
7A	5303001380		Screw		Appelez-nous	-
9A	3205266		Protector-edge (non-illustrated)				$ 80.09
