SELECT A DIAGRAM

Diagram for 01 - Body
01 - Body

Diagram for 02 - Control Panel
02 - Control Panel

Diagram for 03 - Door
03 - Door

Diagram for 04 - Internal Controls
04 - Internal Controls

No Diagram Image Available
05 - Microwave

Diagram for 06 - Oven
06 - Oven

Diagram for 07 - Wiring Information
07 - Wiring Information


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4002F121-51 Back, Main 10 Appelez-nous -
1 WP7101P126-60 Screw   (Replaces: 7101P356-60) 10 In-Stock Immediately $ 6.85

2 3601F005-61 Baffle, Base 10 Appelez-nous -
2 WP7101P126-60 Screw   (Replaces: 7101P356-60) 10 In-Stock Immediately $ 6.85

3 74001845 Base, Oven 10 Appelez-nous -
3 WP7101P126-60 Screw   (Replaces: 7101P356-60) 10 In-Stock Immediately $ 6.85

4 WP98008545 Screw (1/2``)   (Replaces: 7101P040-60) 10 Special Order $ 15.94

4 7706P153-60 Extrusion, Bottom (blk) 10 Appelez-nous -
5 7750P112-60 Extrusion, Side (lt) 10 Appelez-nous -
5 7750P111-60 Extrusion, Side (rt) 10 Appelez-nous -
5 WP7103P114-60 Nut, Snap (round-wht)   (Replaces: 7103P039-60) 10 Special Order $ 9.89

5 WP98008545 Screw (1/2``)   (Replaces: 7101P040-60) 10 Special Order $ 15.94

6 74001984 Hinge, Door 13 Special Order $ 126.36

6 7106P037-60 Hinge, Door 10 Appelez-nous -
6 WP4159193 Screw   (Replaces: 7101P115-60) 10 Special Order $ 4.29

7 WP7101P126-60 Screw   (Replaces: 7101P356-60) 10 In-Stock Immediately $ 6.85

7 2618F113-51 Panel, Side (lt) 10 Appelez-nous -
7 2618F114-51 Panel, Side (rt) 10 Appelez-nous -
8 WP7101P126-60 Screw   (Replaces: 7101P356-60) 10 In-Stock Immediately $ 6.85

8 3804F104-51 Retainer, Bottom Insulation 10 Appelez-nous -
9 3804F096-51 Retainer, Rear 10 Appelez-nous -
9 WP7101P126-60 Screw   (Replaces: 7101P356-60) 10 In-Stock Immediately $ 6.85

10 WP7101P126-60 Screw   (Replaces: 7101P356-60) 10 In-Stock Immediately $ 6.85

10 3807F137-80 Support 10 Appelez-nous -
11 7002P163-60 Insulation (bottom) 10 Appelez-nous -
11 7002P153-60 Insulation (top & Rear) 10 Appelez-nous -
11 7002P154-60 Insulation (back) 10 Appelez-nous -
12 WP7101P126-60 Screw   (Replaces: 7101P356-60) 10 In-Stock Immediately $ 6.85

12 7112P020-60 Clip, Oven Front 10 Appelez-nous -
13 3601F244-51 Baffle, Side 10 Appelez-nous -
13 WP7101P126-60 Screw   (Replaces: 7101P356-60) 10 In-Stock Immediately $ 6.85

14 7752P013-60 Extrusion, Top 10 Appelez-nous -
14 WP98008545 Screw (1/2``)   (Replaces: 7101P040-60) 10 Special Order $ 15.94

15 3801F073-51 Bracket, Microwave 10 Appelez-nous -
16 7706P149-60 Extrusion, Side Filler (rt) 10 Appelez-nous -
16 7706P148-60 Extrusion, Side Filler (lt) 10 Appelez-nous -
16 WP98008545 Screw (1/2``)   (Replaces: 7101P040-60) 10 Special Order $ 15.94

17 WP98008545 Screw (1/2``)   (Replaces: 7101P040-60) 10 Special Order $ 15.94

17 7706P151-60 Extrusion, Filler (top) 10 Appelez-nous -
19 8004P005-60 Support, Glass 10 Appelez-nous -
19 7101P082-60 Screw 10 Appelez-nous -
22 7103P051-60 Nut, Snap 10 Appelez-nous -
22 7103P040-60 Nut, Snap (wht) 10 Appelez-nous -
23 WPW10245259 Block, Terminal   (Replaces: 7401P038-60) 10 In-Stock Immediately $ 31.65


    View Diagram in Separate Window     Print Icon   Print Part List

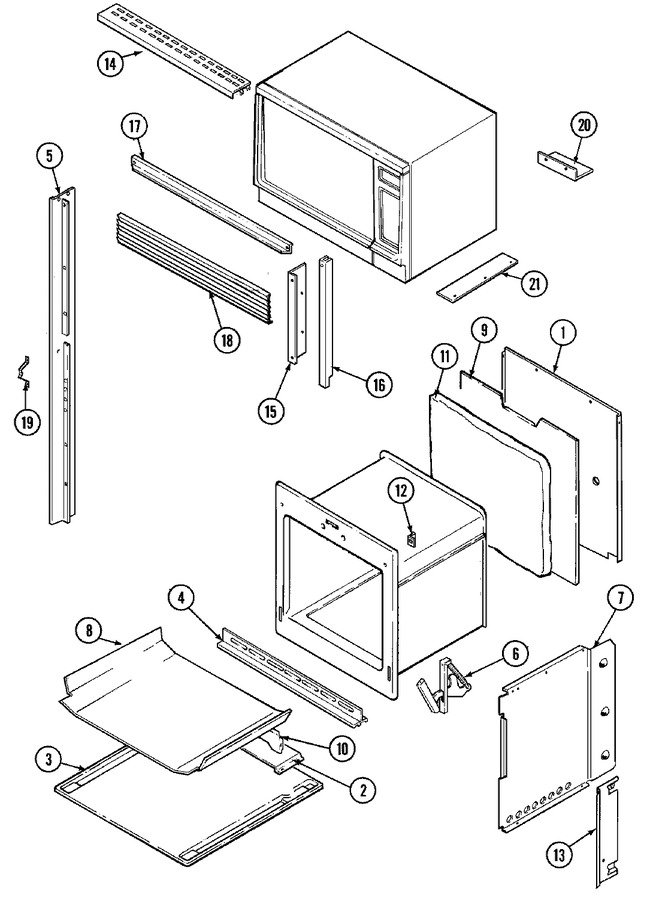

Diagram for 9835XUB
