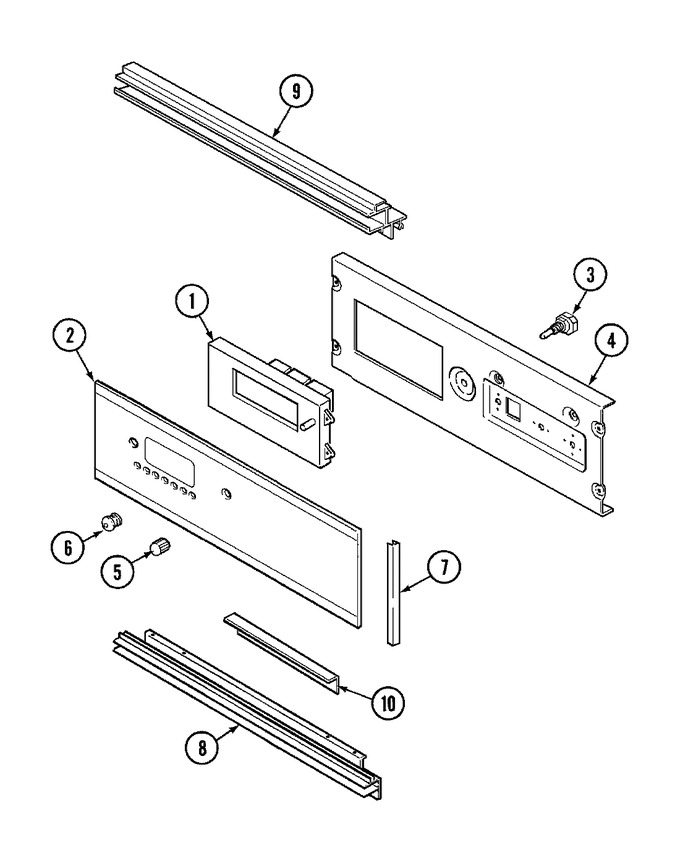

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door
04 - Internal Controls
05 - Microwave
06 - Oven
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7601P281-60 | Clock | 10 |
|
- | ||||
| 1 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 10 |
|
$ 6.98 | ||||
| 2 | 74002018 | Panel, Control (blk) | 10 |
|
- | ||||
| 2 | 8010P100-60 | Spacer | 10 |
|
- | ||||
| 3 | 7403P109-60 | Switch, Push (blk) | 10 |
|
- | ||||
| 4 | 7208P008-60 | Seal | 10 |
|
- | ||||
| 4 | 3605F196-80 | Plate, Backing | 10 |
|
- | ||||
| 4 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 10 |
|
Immediately | $ 6.85 | |||
| 5 | WP7711P492-60 | Knob, Clock (blk) (Replaces: 7711P492-60) | 10 |
|
$ 12.13 | ||||
| 6 | 7711P490-60 | Button, Clock (blk) | 10 |
|
- | ||||
| 7 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 10 |
|
$ 15.94 | ||||
| 7 | 7720P023-60 | Trim, Glass Retainer | 10 |
|
- | ||||
| 8 | 7756P070-60 | Extrusion, Vent (blk) | 10 |
|
- | ||||
| 8 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 10 |
|
$ 15.94 | ||||
| 9 | 7706P152-60 | Extrusion, Ctrl Top | 10 |
|
- | ||||
| 10 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 10 |
|
Immediately | $ 6.85 | |||
| 10 | 3604F048-80 | Shield, Terminal | 10 |
|
- | ||||
| 11 | 5170D222-60 | Harness, Main | 10 |
|
- | ||||
| 11 | 5170P185-60 | Harness, Sensor/lock | 10 |
|
- | ||||
| 12 | 8112P119-60 | Manual, Use & Care | 10 |
|
- | ||||
| 13 | 16000329 | Guide, Quick Ref. - Magic Chef | 10 |
|
- |
