Diagram for 01 - Console
01 - Console

Diagram for 02 - Tub, Lit/optional
02 - Tub, Lit/optional

Diagram for 03 - Door
03 - Door

Diagram for 04 - Dishrack
04 - Dishrack

Diagram for 05 - Pump And Motor
05 - Pump And Motor

Diagram for 06 - Section
06 - Section


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3368537 Foam, Seal Appelez-nous -
2 WP4314961 Rocker Switch   (Replaces: 661520) Special Order $ 80.53

3 WP304231 Screw, 8-18 X 1/2 (3)   (Replaces: 304231) In-Stock Immediately $ 6.98

4 3370001 Timer Special Order $ 2,179.14

5 304232 Screw, 7-18 X 1-3/8 Appelez-nous -
6 304409 Relay, Start Appelez-nous -
7 3369915 Console (includes Items 8 & 11) Appelez-nous -
8 3369914 Insert, Decorative Appelez-nous -
9 3367843 Knob, Timer Appelez-nous -
10 WP488729 Screw, 8-18 X 1/2 (4)   (Replaces: 304234) In-Stock Immediately $ 7.01

11 304602 Grill, Vent Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

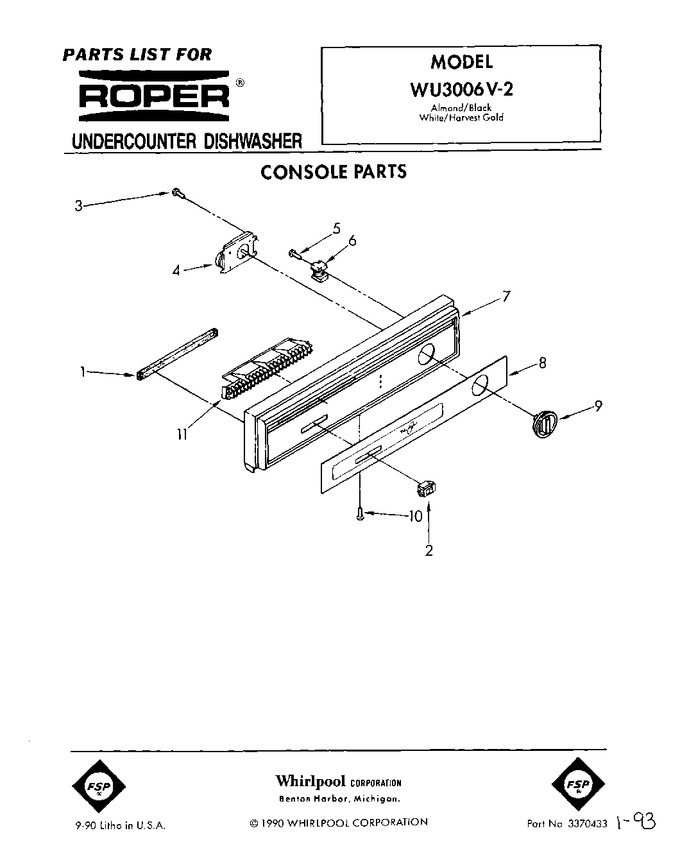

Diagram for WU3006V2
