SELECT A DIAGRAM

01 - Console


02 - Tub, Lit/optional


03 - Door


04 - Dishrack


05 - Pump And Motor


06 - Section

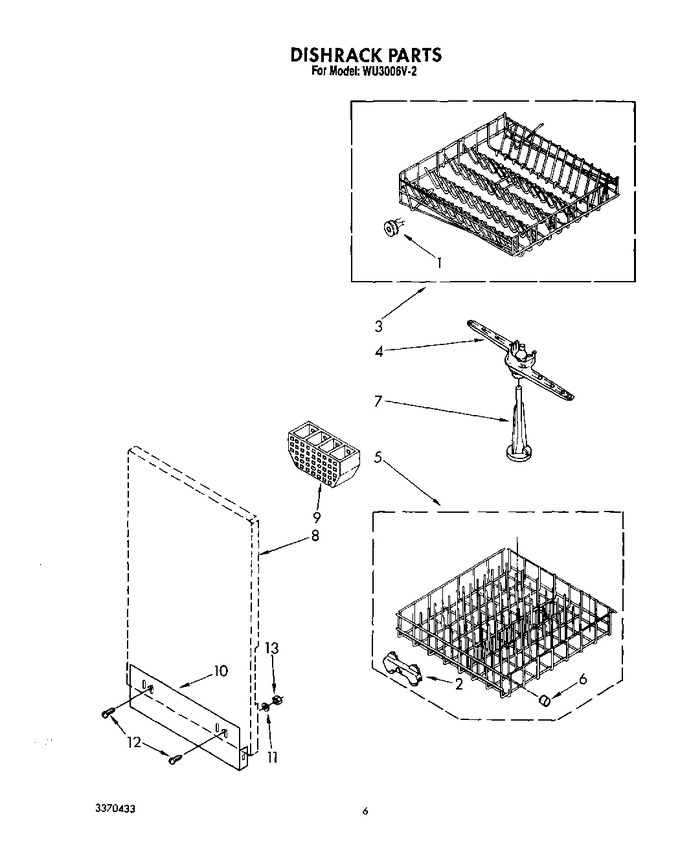

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	300995		Wheel & Axle Assembly (4)		Appelez-nous	-
2	WP3376961		Wheel & Transport Assembly (4)   (Replaces: 3369509)				$ 84.59
3	W11169039		Dishrack, Upper   (Replaces: 661521)			Immediately	$ 182.83
4	304204		Spray Arm Assembly				$ 67.61
5	W10311986		Dishrack, Lower   (Replaces: 3368599)			Immediately	$ 169.33
6	304490		Bumper		Appelez-nous	-
7	304170		Tower				$ 72.38
8	675598		Panel, Reversible Side (almond)		Appelez-nous	-
8	675599		Panel, Reversible Side (toast)		Appelez-nous	-
8	675600		Panel, Reversible Side (platinum)		Appelez-nous	-
8	675601		Panel, Reversible Side (golden Harvest)		Appelez-nous	-
8	675602		Panel, Reversible Side (new Avocado)		Appelez-nous	-
8	675596		Panel, Reversible Side (white)		Appelez-nous	-
8	675597		Panel, Reversible Side (coffee)		Appelez-nous	-
9	WP8539066		Silverware Basket   (Replaces: 3367117)				$ 91.31
10	3367549		Panel, Lower Side		Appelez-nous	-
11	W11089212		Washer (2)   (Replaces: 12035)				$ 8.70
12	9419621		Screw (2)				$ 5.60
13	W10080180		Nut (2)   (Replaces: 965176)				$ 12.13

    View Diagram in Separate Window       Print Part List
