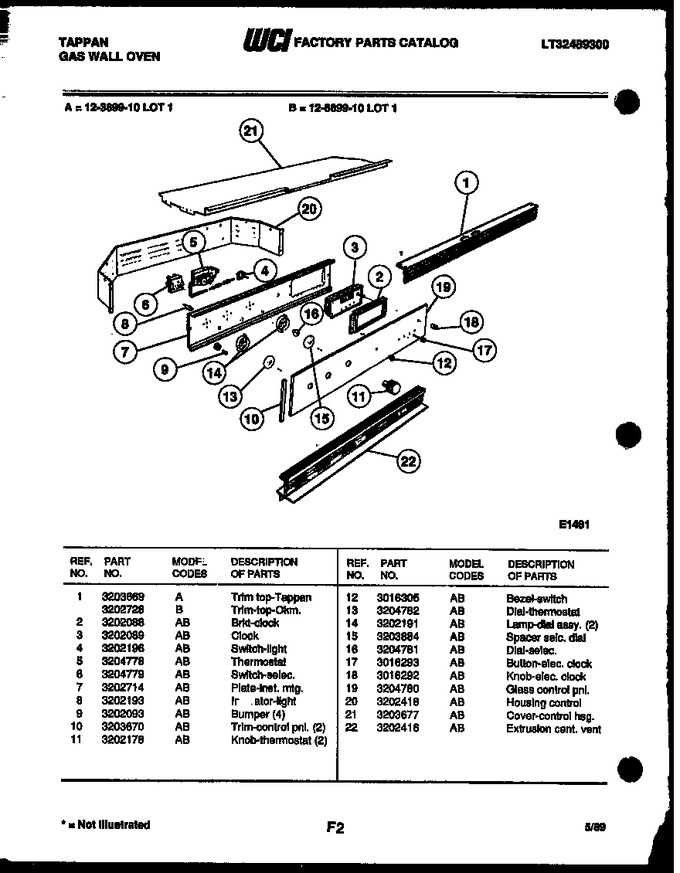

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Control Panel
03 - Door Parts
04 - Gas Control
05 - Body Parts
06 - Wrapper And Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3203669 | Trim-top Tappan |
|
- | |||||
| 2 | 3202088 | Brkt-clock |
|
- | |||||
| 3 | 3202089 | Clock |
|
- | |||||
| 4 | 3202196 | Switch-light |
|
- | |||||
| 5 | 3204778 | Thermostat |
|
- | |||||
| 6 | 3204779 | Switch-selec. |
|
- | |||||
| 7 | 3202714 | Plate-inst. Mtg. |
|
- | |||||
| 8 | 3202193 | Indicator Light |
|
- | |||||
| 9 | 3202093 | Bumper (4) |
|
- | |||||
| 10 | 3203670 | Trim-control Pnl. (2) |
|
- | |||||
| 11 | 3202178 | Knob-thermostat (2) |
|
- | |||||
| 12 | 3016305 | Bezel-switch |
|
- | |||||
| 13 | 3204782 | Dial-thermostat |
|
- | |||||
| 14 | 3202191 | Lamp-dial Assy. (2) |
|
- | |||||
| 15 | 3203884 | Spacer Selc. Dial |
|
- | |||||
| 16 | 3204781 | Dial-selec. |
|
- | |||||
| 17 | 3016293 | Button-elec. Clock |
|
- | |||||
| 18 | 3016292 | Knob-elec. Clock |
|
- | |||||
| 19 | 3204780 | Glass Control Pnl. |
|
- | |||||
| 20 | 3202418 | Housing-control |
|
- | |||||
| 21 | 3203677 | Cover-control Hsg. |
|
- | |||||
| 22 | 3202416 | Extrusion-cent. Vent |
|
- |
