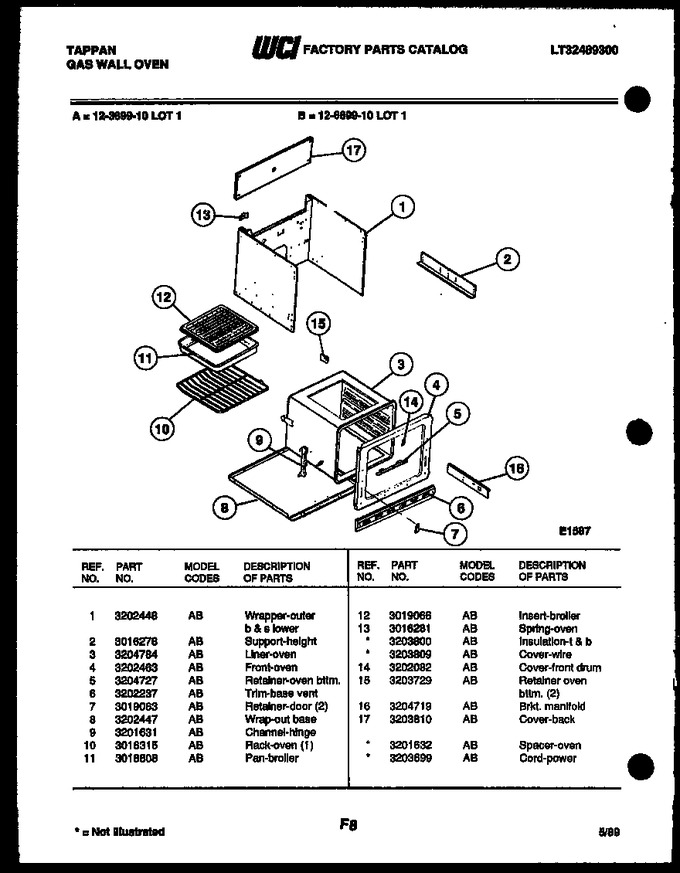

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3202448 | Wrapper-outer B & S Lower |
|
- | |||||
| 2 | 3016278 | Support-height |
|
- | |||||
| 3 | 3204784 | Liner-oven |
|
- | |||||
| 4 | 3202463 | Front-oven |
|
- | |||||
| 5 | 3204727 | Retainer-oven Bttm. |
|
- | |||||
| 6 | 3202237 | Trim-base Vent |
|
- | |||||
| 7 | 3019063 | Retainer - Door (2) |
|
- | |||||
| 8 | 3202447 | Wrap-out Base |
|
- | |||||
| 9 | 3201631 | Channel, Hinge |
|
$ 58.22 | |||||
| 10 | 3016315 | Rack-oven (1) |
|
- | |||||
| 11 | 3018808 | Pan-broiler |
|
- | |||||
| 12 | 3019066 | Insert-broiler |
|
- | |||||
| 13 | 3016281 | Spring, Oven |
|
- | |||||
| 14 | 3202082 | Cover-front Drum |
|
- | |||||
| 15 | 3203729 | Retainer Oven Bttm. (2) |
|
- | |||||
| 16 | 3204719 | Brkt. Manifold |
|
- | |||||
| 17 | 3203810 | Cover-back |
|
- | |||||
| *24432 | 3201632 | Spacer-oven |
|
- | |||||
| *24432 | 3203699 | Cord Power |
|
- | |||||
| 13A | 3203800 | Insulation-t & B (non-illustrated) |
|
- | |||||
| 13B | 3203809 | Cover-wire (non-illustrated) |
|
- |
