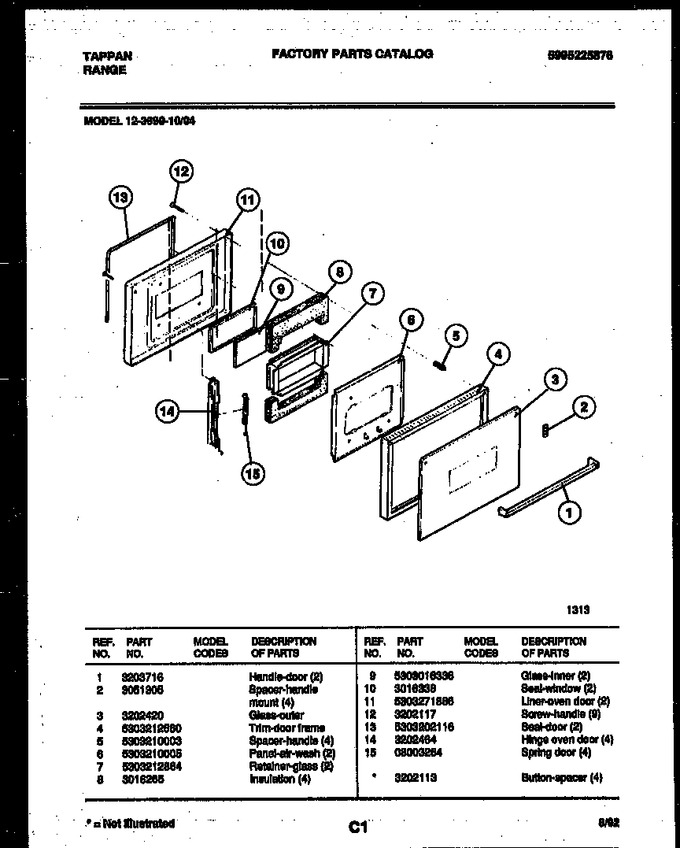

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3203716 | Handle-door (2) |
|
- | |||||
| 2 | 3051305 | Spacer-handle Mount (4) |
|
- | |||||
| 3 | 3202420 | Glass-outer |
|
- | |||||
| 4 | 5303212560 | Trim-door Frame |
|
- | |||||
| 5 | 5303210003 | Spacer-handle (4) |
|
- | |||||
| 6 | 5303210005 | Panel-air-wash (2) |
|
- | |||||
| 7 | 5303212864 | Retainer-glass, (2) |
|
- | |||||
| 8 | 3016265 | Insulation (4) |
|
- | |||||
| 9 | 5303016336 | Glass-inner (2) |
|
- | |||||
| 10 | 3016338 | Seal-window (2) |
|
$ 43.20 | |||||
| 11 | 5303271886 | Liner-oven Door (2) |
|
- | |||||
| 12 | 3202117 | Screw-handle (9) |
|
- | |||||
| 13 | 5303202116 | Seal-door (2) |
|
$ 136.08 | |||||
| 14 | 3202464 | Hinge Oven Door (4) |
|
- | |||||
| 15 | 08003264 | Spring-oven Door |
|
- | |||||
| *77297 | 3202113 | Button-spacer (4) |
|
- |
