Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3204210		Shield-top		Appelez-nous	-
2	3203725		Flue		Appelez-nous	-
3	3203686		Shield-flue Bttm		Appelez-nous	-
4	3203730		Flue Adaptor		Appelez-nous	-
5	5303016315		Rack-oven (2)		Appelez-nous	-
7	316116400		Recept. Light   (Replaces: 5308011085)			Immediately	$ 56.10
8	40A15		Bulb-light   (Replaces: 5303013071)			Immediately	$ 1.98
9	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 14.18
10	3204483		Retainer-lens		Appelez-nous	-
11	3203721		Bottom-oven		Appelez-nous	-
12	3203720		Baffle-oven Bottom		Appelez-nous	-
13	3204724		Box-oven Burner		Appelez-nous	-
14	5301314211		Switch-oven Light				$ 95.29
15	3202082		Cover-front Drum Seam		Appelez-nous	-
16	3019063		Retainer-door		Appelez-nous	-
17	3203685		Shield-vent		Appelez-nous	-
18	3202463		Front-oven		Appelez-nous	-
19	3204783		Liner (upper)		Appelez-nous	-
20	3203802		Trim-side Inner (rh)		Appelez-nous	-
21	5303291238		Trim-side Outer (2)		Appelez-nous	-
22	3201631		Channel, Hinge				$ 58.22
23	3203861		Wrapper-(upper)		Appelez-nous	-
24	3203690		Wrapper, Top		Appelez-nous	-
25	3016281		Spring Oven (4)		Appelez-nous	-
26	3203680		Cover-capil. Tube		Appelez-nous	-
27	3203684		Shield-insulation (top & Side)		Appelez-nous	-
28	5303280338		Trim-cap (rh)		Appelez-nous	-
*77303	3204817		Plug, Button		Appelez-nous	-
*77303	3203801		Insulation-front Frame		Appelez-nous	-
20A	3203803		Trim-side Inner (lh)		Appelez-nous	-
25A	3202093		Bumper-main (2) (non-illustrated)		Appelez-nous	-
25B	3016323		Insulation-wrapper (non-illustrated)		Appelez-nous	-
25C	3203660		Insulation-front Frame (non-illustrated)		Appelez-nous	-
25D	5303284616		Clip Capillary (non-illustrated)				$ 9.86
28A	5303280339		Trim-cap (lh)		Appelez-nous	-

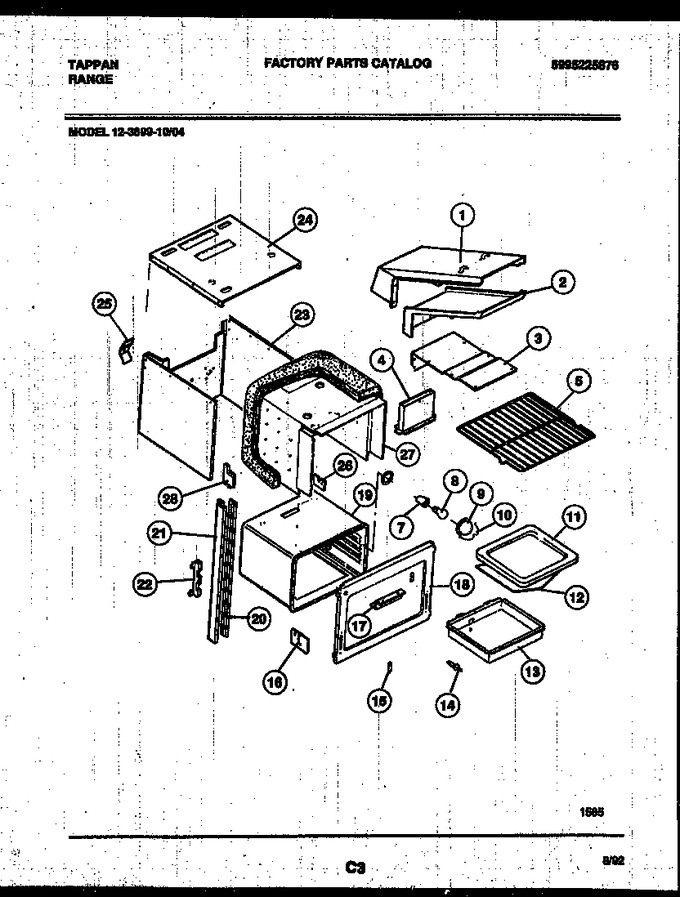

    View Diagram in Separate Window       Print Part List
