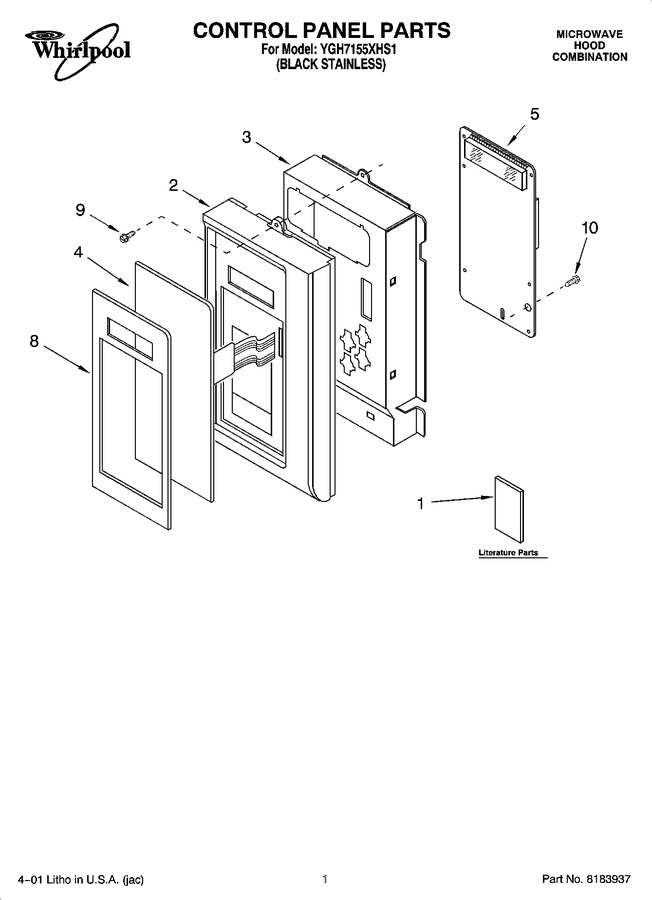

01 - Control Panel Parts


02 - Door Parts


03 - Cabinet Parts


04 - Magnetron And Air Flow Parts


05 - Interior Parts


06 - Latch Board Parts


07 - Ventilation Parts


08 - Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT4359994		Literature Parts (guide, U & C)		Appelez-nous	-
1	LIT8171974		Literature Parts (instructions, Installation (english))		Appelez-nous	-
1	LIT8171840		Literature Parts (instructions, Installation (french))		Appelez-nous	-
1	LIT8171839		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT4359076		Literature Parts (cookbook (english))		Appelez-nous	-
1	LIT4359077		Literature Parts (cookbook (french))		Appelez-nous	-
1	LIT4359969		Literature Parts (guide, Cooking (english))		Appelez-nous	-
1	LIT4359995		Literature Parts (guide, Cooking (french))		Appelez-nous	-
2	8171853		Control Panel		Appelez-nous	-
3	8171855		Bracket, Control		Appelez-nous	-
4	8171856		Key Membrane		Appelez-nous	-
5	8171857		Pcb Sub Assy.		Appelez-nous	-
8	8171852		Cover, Front		Appelez-nous	-
9	4358762		Screw				$ 7.10
10	4344826		Screw   (Replaces: 4358489)				$ 14.31
