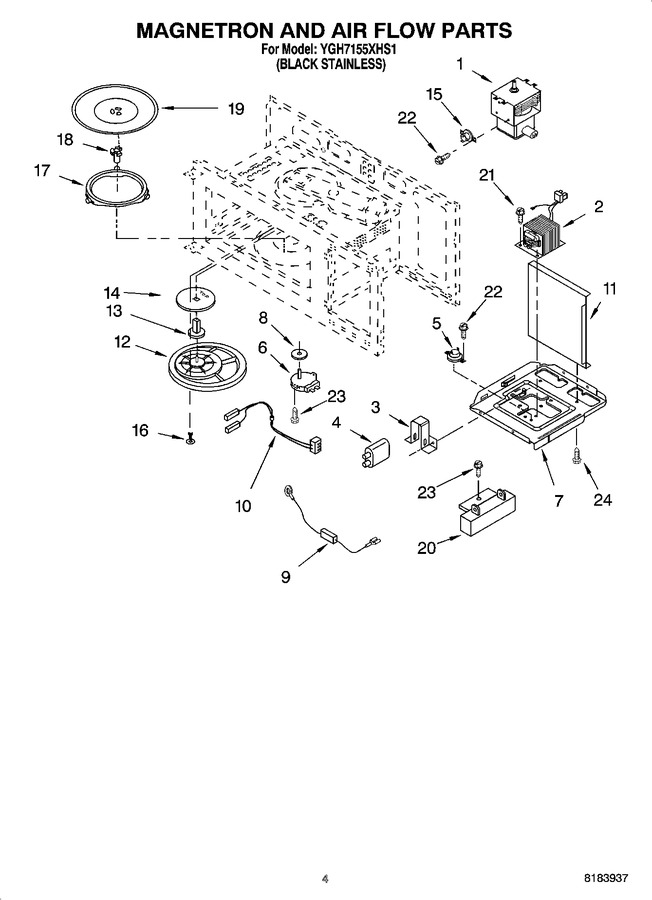

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8171874 | Magnetron |
|
- | |||||
| 2 | 8183972 | H.v. Transformer |
|
- | |||||
| 3 | 4359497 | Bracket, H.v. |
|
- | |||||
| 4 | 8183536 | Capacitor, H.v. |
|
- | |||||
| 5 | 4158368 | Base Thermostat |
|
- | |||||
| 6 | 4359498 | Motor, Turntable |
|
- | |||||
| 7 | 8171868 | Plate |
|
- | |||||
| 8 | 8171805 | Seal, Water |
|
- | |||||
| 9 | WP8205489 | H.v. Diode Cable (Replaces: 8171879) |
|
$ 58.19 | |||||
| 10 | 4359503 | Lead Wire |
|
- | |||||
| 11 | 8171864 | Guide |
|
- | |||||
| 12 | 8171869 | Cover |
|
- | |||||
| 13 | 8171870 | Holder |
|
$ 59.05 | |||||
| 14 | 8171872 | Stirrer Fan |
|
- | |||||
| 15 | 8183694 | Thermostat |
|
- | |||||
| 16 | WP4359508 | Rivet (Replaces: 4359508) |
|
$ 8.28 | |||||
| 17 | 4359509 | Rotating Ring |
|
- | |||||
| 18 | 4359618 | Turntable Shaft |
|
- | |||||
| 19 | WP8172138 | Glass Tray (Replaces: 8172138) |
|
$ 87.23 | |||||
| 20 | 8171858 | Resistor, Cement |
|
- | |||||
| 21 | WP3400094 | Screw (Replaces: 4158747) |
|
$ 7.14 | |||||
| 22 | 8171882 | Screw |
|
- | |||||
| 23 | 4344826 | Screw (Replaces: 4358489) |
|
$ 14.31 | |||||
| 24 | 4358404 | Installation Hardware |
|
- | |||||
| 24 | 4358883 | Screw |
|
- | |||||
| 24 | WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 |
