Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 9752897PW Panel, Control Special Order $ 40.63

2 9753764CW Glass-console Appelez-nous -
3 9780799 Lens, Indic. (2) Appelez-nous -
4 814562 End Cap (left)   (Replaces: 9781889FW) Special Order $ 6.45

4 814562 End Cap (right)   (Replaces: 9781888FW) Special Order $ 6.45

5 9753504 Gasket, Cover Appelez-nous -
6 9752955 Cover, Control Appelez-nous -
7 9752906 Clip, Glass (2) Appelez-nous -
8 WP9752405FW Knobs, Control (4)   (Replaces: 9752405FW) Special Order $ 19.98

9 9753503 Label-wpsi Control Appelez-nous -
15 9753633 Control, Range Special Order $ 291.97

16 9781954FW Knob, Timer (18) Special Order $ 16.39

19 WP9750646 Infinite Switch (2400w (2))   (Replaces: 9750646) In-Stock Immediately $ 88.82

19 WP9750643 Infinite Switch (1400w (2))   (Replaces: 9750643) In-Stock Immediately $ 130.61

33 WP3400882 Screw   (Replaces: 3400816) In-Stock Immediately $ 6.47


    View Diagram in Separate Window     Print Icon   Print Part List

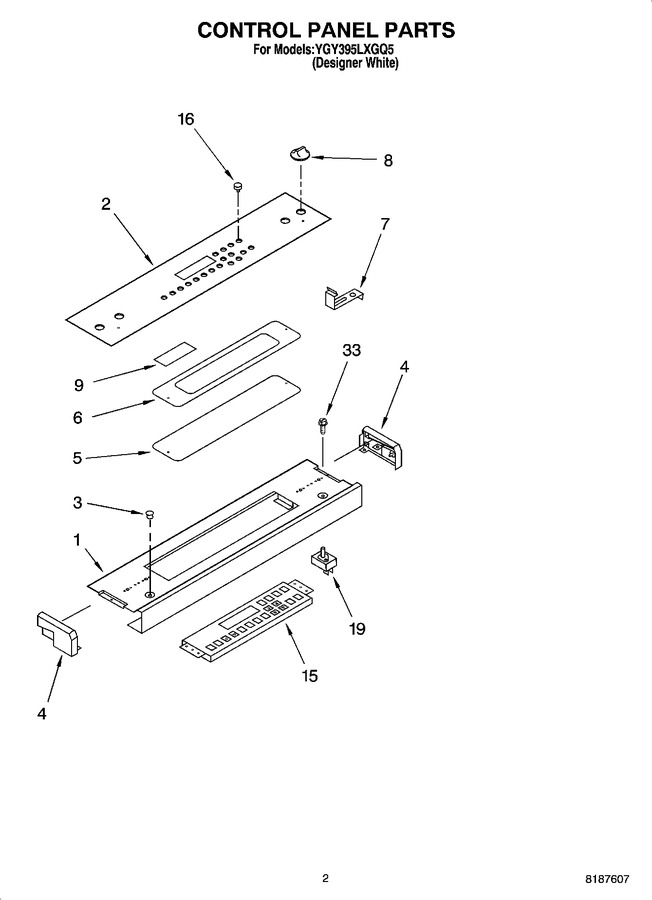

Diagram for YGY395LXGQ5
