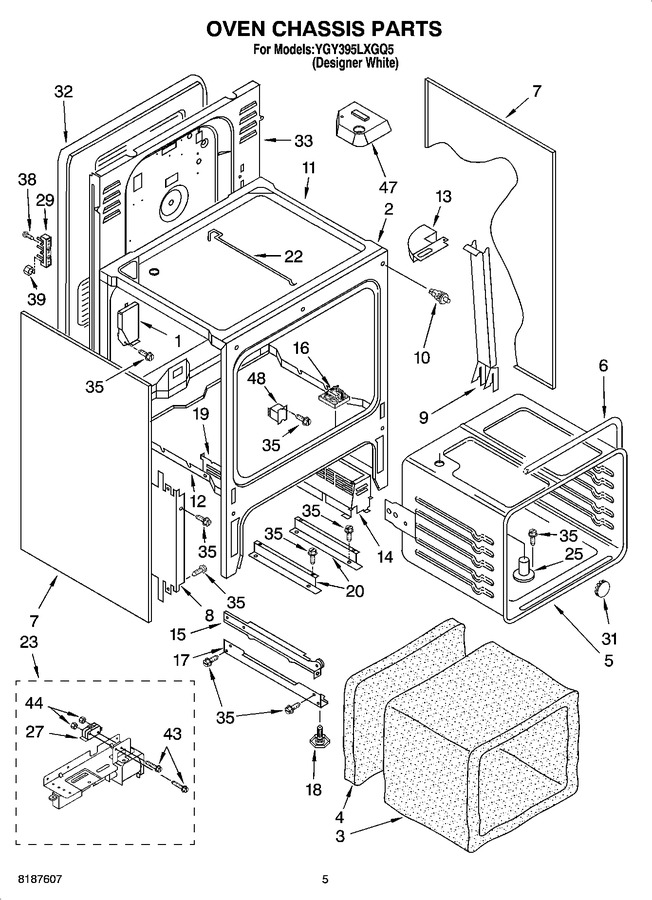

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9752868		Vent Box, Oven		Appelez-nous	-
2	9750514GM		Chassis, Front		Appelez-nous	-
3	9754000		Insulation, Wrap		Appelez-nous	-
4	9754011		Insulation, Rear		Appelez-nous	-
5	9781293GM		Oven Liner		Appelez-nous	-
6	9755179		Gasket, Oven		Appelez-nous	-
7	9781907PW		Oven, Side Panel		Appelez-nous	-
8	9780664		Shield, Insulation		Appelez-nous	-
9	9751789		Duct, Side Fan		Appelez-nous	-
10	9781580		Door Switch (oven Light)				$ 65.75
11	9752919		Burner Box		Appelez-nous	-
12	9750142		Oven Bottom		Appelez-nous	-
13	9751653		Duct, Top		Appelez-nous	-
14	9751060		Support, Fan		Appelez-nous	-
15	9750223		Drawer Rail, Left		Appelez-nous	-
15	9750224		Drawer Rail, Right		Appelez-nous	-
16	9751020		Motor, Fan				$ 215.07
17	9750147		Bottom Rail (2)		Appelez-nous	-
18	WPW10058460		Foot, (4)   (Replaces: 312701)			Immediately	$ 7.07
19	9782005		Receiver, Hinge (r Or L)		Appelez-nous	-
20	9781904		Support Rail, Pan (2)		Appelez-nous	-
22	9750523		Rod, Lock		Appelez-nous	-
23	9782258		Oven Lock Assembly		Appelez-nous	-
25	9753091		Vent Tube		Appelez-nous	-
27	9782106		Switch, Interlock				$ 37.21
29	WP8203546		Block, Terminal   (Replaces: 258076)			Immediately	$ 27.12
31	9780578		Plug, Button		Appelez-nous	-
32	9751353		Cover, Back		Appelez-nous	-
33	9751051		Back, Chassis		Appelez-nous	-
35	9780265		Screw		Appelez-nous	-
38	98884		Screw		Appelez-nous	-
39	WP112432		Nut   (Replaces: 112432)				$ 7.16
43	9750887		Screw		Appelez-nous	-
44	9750888		Nut		Appelez-nous	-
47	9782330		Block, Balance		Appelez-nous	-
47	340184		Screw				$ 12.10
48	9752149		Relay		Appelez-nous	-
