01 - Body
02 - Control Panel
03 - Door
04 - Internal Controls
05 - Microwave
06 - Oven
SELECT A DIAGRAM
New Model Search:

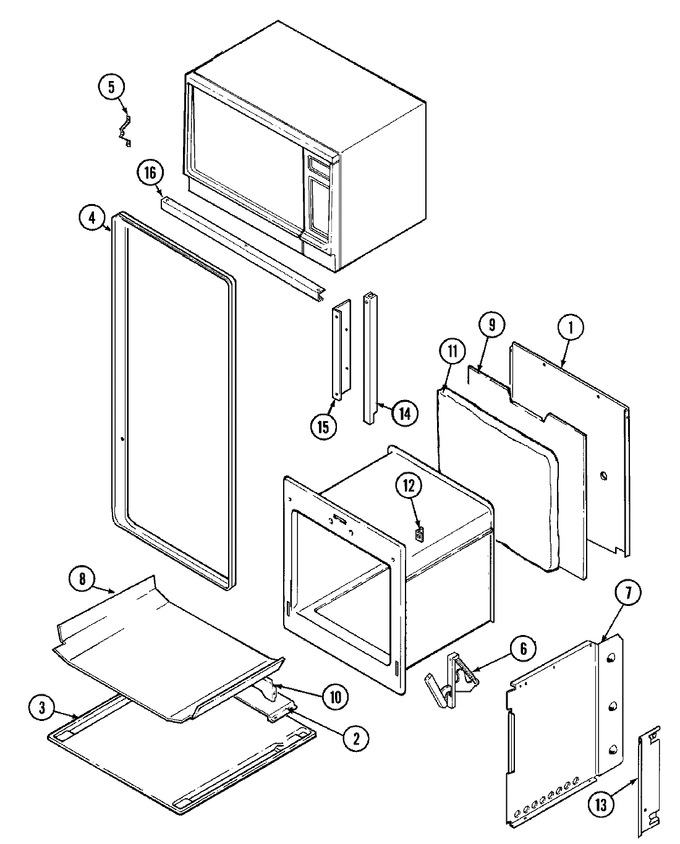

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 01 |
|
Immediately | $ 6.85 | |||
| 1 | 4002F121-51 | Back, Main | 01 |
|
- | ||||
| 2 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 01 |
|
Immediately | $ 6.85 | |||
| 2 | 3601F005-61 | Baffle, Base | 01 |
|
- | ||||
| 3 | 4003F011-80 | Base, Wall Oven | 01 |
|
- | ||||
| 3 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 01 |
|
Immediately | $ 6.85 | |||
| 4 | 7750P024-60 | Extrusion, Front Frame | 01 |
|
- | ||||
| 4 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 01 |
|
$ 15.94 | ||||
| 5 | 8004P005-60 | Support, Glass | 01 |
|
- | ||||
| 5 | 7101P082-60 | Screw | 01 |
|
- | ||||
| 6 | WP4159193 | Screw (Replaces: 7101P115-60) | 01 |
|
$ 4.29 | ||||
| 6 | 7106P037-60 | Hinge, Door | 01 |
|
- | ||||
| 7 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 01 |
|
Immediately | $ 6.85 | |||
| 7 | 2618F054-51 | Panel, Side (lt) | 01 |
|
- | ||||
| 7 | 2618F053-51 | Panel, Side (rt) | 01 |
|
- | ||||
| 8 | 3804F104-51 | Retainer, Bottom Insulation | 01 |
|
- | ||||
| 8 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 01 |
|
Immediately | $ 6.85 | |||
| 9 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 01 |
|
Immediately | $ 6.85 | |||
| 9 | 3804F052-51 | Ret Rear Insul | 01 |
|
- | ||||
| 10 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 01 |
|
Immediately | $ 6.85 | |||
| 10 | 3807F137-80 | Support | 01 |
|
- | ||||
| 11 | 7002P153-60 | Insulation (top & Rear) | 01 |
|
- | ||||
| 11 | 7002P163-60 | Insulation (bottom) | 01 |
|
- | ||||
| 11 | 7002P154-60 | Insulation (back) | 01 |
|
- | ||||
| 12 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 01 |
|
Immediately | $ 6.85 | |||
| 12 | 7112P020-60 | Clip, Oven Front | 01 |
|
- | ||||
| 13 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 01 |
|
Immediately | $ 6.85 | |||
| 13 | 3601F130-51 | Baffle, Side | 01 |
|
- | ||||
| 14 | 7706P160-60 | Extrusion, Side Fil Lt | 01 |
|
- | ||||
| 14 | 7706P159-60 | Extrusion, Side Fil Rt | 01 |
|
- | ||||
| 14 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 01 |
|
$ 15.94 | ||||
| 15 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 15 | 3801F105-51 | Bracket Retainer Rt | 01 |
|
- | ||||
| 15 | 3801F106-51 | Bracket, Retainer Lf | 01 |
|
- | ||||
| 16 | 7756P034-60 | Extrusion, Top Filler | 01 |
|
- | ||||
| 16 | 7103P040-60 | Nut, Snap (wht) | 01 |
|
- | ||||
| 16 | 7103P051-60 | Nut, Snap | 01 |
|
- | ||||
| 16 | WP7103P114-60 | Nut, Snap (round-wht) (Replaces: 7103P039-60) | 01 |
|
$ 9.89 | ||||
| 17 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) | 01 |
|
Immediately | $ 31.65 |
