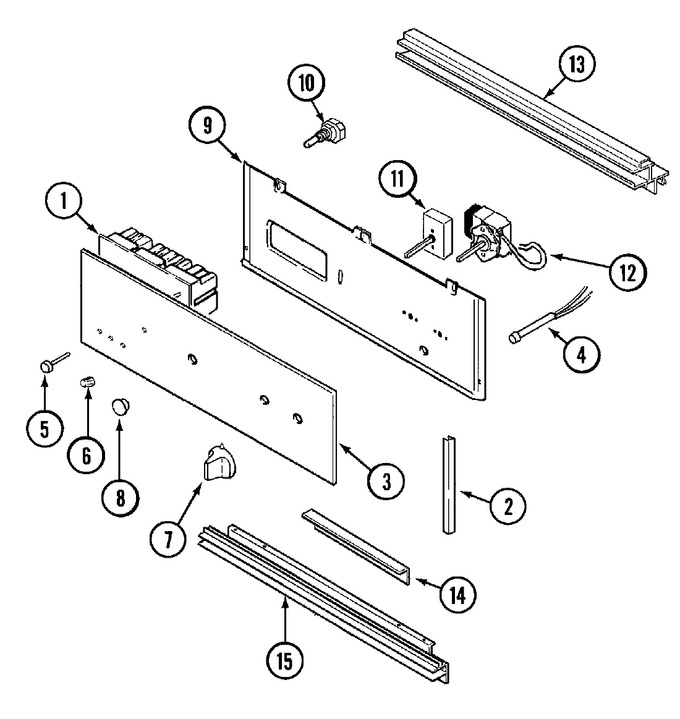

01 - Body
02 - Control Panel
03 - Door
04 - Internal Controls
05 - Microwave
06 - Oven
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7601P197-60 | Clock | 01 |
|
- | ||||
| 2 | 7720P023-60 | Trim, Glass Retainer | 01 |
|
- | ||||
| 3 | 8010P050-60 | Felt, Disc | 01 |
|
- | ||||
| 3 | 74001191 | Glass, Control Panel (blk) | 01 |
|
- | ||||
| 4 | 7414P004-60 | Insulator, Terminal | 01 |
|
- | ||||
| 4 | 5700A236-60 | Light, Indicator | 01 |
|
- | ||||
| 5 | 7711P171-60 | Knob, Clock (button-blk) | 01 |
|
$ 19.90 | ||||
| 6 | 7711P172-60 | Knob, Clock (blk) | 01 |
|
$ 23.55 | ||||
| 7 | 7711P291-60 | Knob (chr) | 01 |
|
- | ||||
| 8 | 7214P007-60 | Sleeve, Switch (blk) | 01 |
|
- | ||||
| 9 | 3605F139-80 | Support, Clock | 01 |
|
- | ||||
| 10 | 7403P109-60 | Switch, Push (blk) | 01 |
|
- | ||||
| 11 | 7403P023-60 | Switch, Selector | 01 |
|
- | ||||
| 12 | 7101P279-60 | Screw W/washer | 01 |
|
- | ||||
| 12 | 7404P039-60 | Thermostat, Upper | 01 |
|
- | ||||
| 12 | 7003P033-60 | Insulation Thermostat | 01 |
|
- | ||||
| 13 | 7706P152-60 | Extrusion, Ctrl Top | 01 |
|
- | ||||
| 14 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 01 |
|
Immediately | $ 6.85 | |||
| 14 | 3604F048-80 | Shield, Terminal | 01 |
|
- | ||||
| 15 | 7756P022-60 | Extrusion, Vent (blk) | 01 |
|
- | ||||
| 16 | 8112P087-60 | Manual, Use & Care | 01 |
|
- | ||||
| 17 | 16000329 | Guide, Quick Ref. - Magic Chef | 01 |
|
- |
