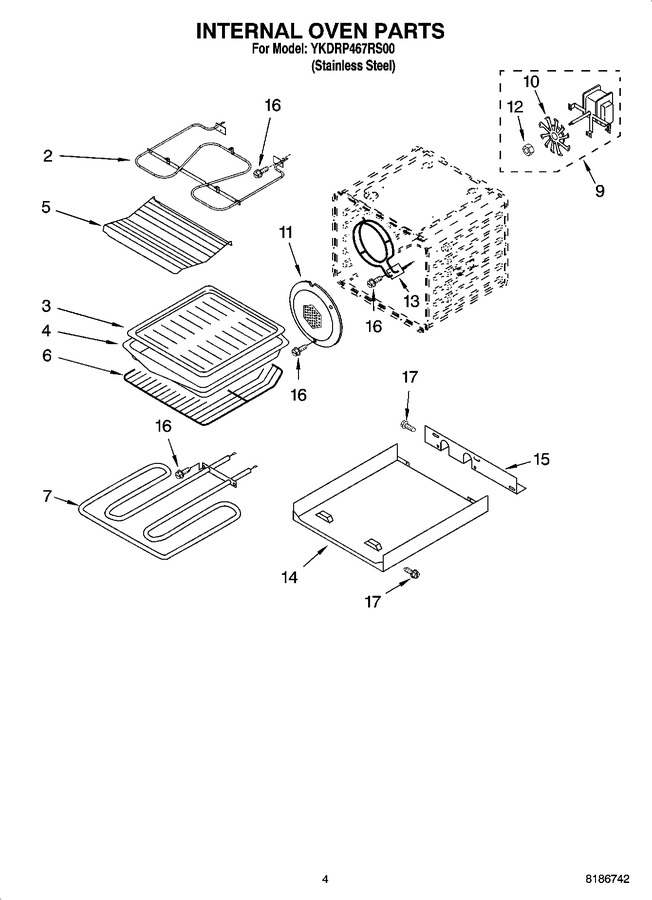

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 9760773 | Element, Broil |
|
$ 153.60 | |||||
| 2 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 3 | WP3195996 | Grill, Broiler (Replaces: 4457277) |
|
$ 82.63 | |||||
| 4 | WP3196076 | Pan, Broiler (Replaces: 4457276) |
|
$ 279.38 | |||||
| 5 | 3181534 | Rack, Roasting |
|
- | |||||
| 6 | 9759437 | Rack, Oven |
|
$ 103.43 | |||||
| 7 | 9760770 | Element, Hidden Bake |
|
$ 155.90 | |||||
| 9 | 4451583 | Motor Convection |
|
$ 140.53 | |||||
| 10 | 4452226 | Blade, Fan |
|
$ 30.89 | |||||
| 11 | WPW10160821 | Cover, Fan (Replaces: 4448418) |
|
$ 244.79 | |||||
| 12 | 4452227 | Nut |
|
$ 33.98 | |||||
| 13 | W11643125 | Element, Convection (Replaces: 9762242) |
|
Immediately | $ 108.72 | ||||
| 14 | 8300799 | Tray, Hidden Bake |
|
- | |||||
| 15 | 8300800 | Cover, Access |
|
- | |||||
| 16 | WP4449154 | Screw, 8-32 X .440 (Replaces: 4449154) |
|
$ 6.80 | |||||
| 17 | WP4449809 | Screw, 8-18 X 3/8 (Replaces: 4449809) |
|
Immediately | $ 6.47 |
