SELECT A DIAGRAM

Diagram for 01 - Oven Parts
01 - Oven Parts

Diagram for 02 - Oven Door Parts
02 - Oven Door Parts

Diagram for 03 - Internal Oven Parts
03 - Internal Oven Parts

Diagram for 04 - Control Panel Parts
04 - Control Panel Parts

Diagram for 05 - Top Venting Parts
05 - Top Venting Parts

Diagram for 06 - Cooktop Parts
06 - Cooktop Parts

Diagram for 07 - Burner Box And Manifold Parts
07 - Burner Box And Manifold Parts

Diagram for 08 - Chassis Parts, Optional Parts
08 - Chassis Parts, Optional Parts


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 9758955 Vent, Exhaust Appelez-nous -
2 9758954 Vent-top Appelez-nous -
3 9759837 Blower 60mm Special Order $ 279.73

4 9758953 Vent-bottom Appelez-nous -
5 WP9760588 Transformer, Light   (Replaces: 9760588) Special Order $ 237.07

6 8300642 Transformer, Control Appelez-nous -
7 WP4449809 Screw, 8-18 X 3/8   (Replaces: 4449809) In-Stock Immediately $ 6.47

8 9758956 Bracket, Blower Appelez-nous -
11 WP8203546 Block, Terminal   (Replaces: 4449868) In-Stock Immediately $ 27.12

14 4452442 R.hand Appelez-nous -
14 4457220 L.hand Appelez-nous -
21 W10491987 Seal, Foam   (Replaces: 4451758) In-Stock Immediately $ 6.98

24 8302210 Control, Zodiac Special Order $ 265.81

25 WP4451985 Suppressor   (Replaces: 4451985) Special Order $ 148.69

26 W11684512 Screw (4)   (Replaces: 3400080) Special Order $ 12.69


    View Diagram in Separate Window     Print Icon   Print Part List

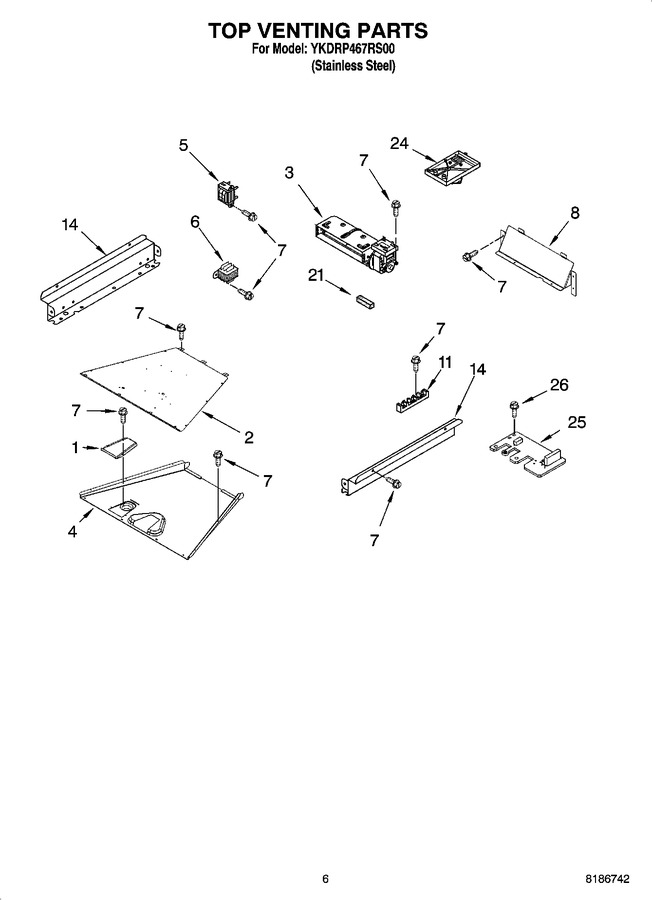

Diagram for YKDRP467RS00
