Diagram for 08 - Triple Crown Burner
08 - Triple Crown Burner

Diagram for 09 - Control Panel Parts, Optional Parts (not Included)
09 - Control Panel Parts, Optional Parts (not Included)


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP9761639 Burner Assembly, Triple Crown Burner   (Replaces: 9761639) Special Order $ 209.43

2 8285250 Plate, Closure Special Order $ 7.51

3 WP8285255 Internal Head, Triple Crown Burner   (Replaces: 8285255) In-Stock Immediately $ 119.12

4 WP8285256 External Head, Triple Crown Burner   (Replaces: 8285256) Special Order $ 121.97

5 8285258 Cap, Burner External Special Order $ 54.26

6 WP9758829CB Cap, Burner Internal   (Replaces: 9758829CB) Special Order $ 48.51

7 WP3400702 Screw   (Replaces: 3400702) Special Order $ 11.22

8 WP12990527 Screw   (Replaces: 3400843) In-Stock Immediately $ 7.15

9 9760519 Valve, T.c.b. Special Order $ 149.60

10 9761072 Tube, Tcb Gas (outer) Special Order $ 125.24

10 9761071 Tube, Tcb Gas (inner) Special Order $ 73.09

11 WP9763494 Igniter   (Replaces: 9763494) Special Order $ 67.88

12 9762442 Orifice (external) Special Order $ 6.15

12 9762443 Orifice (internal) Special Order $ 6.07


    View Diagram in Separate Window     Print Icon   Print Part List

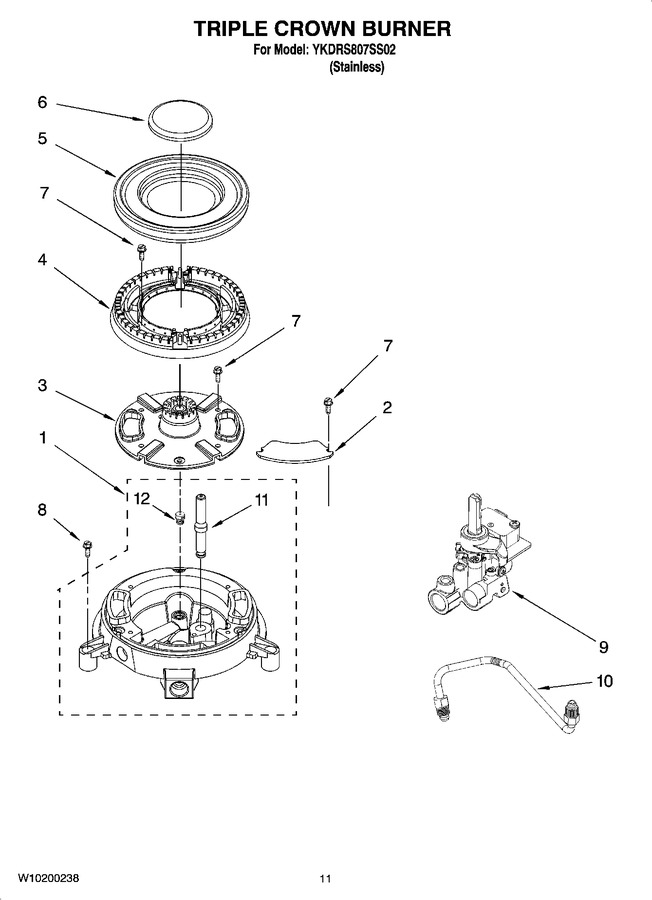

Diagram for YKDRS807SS02
