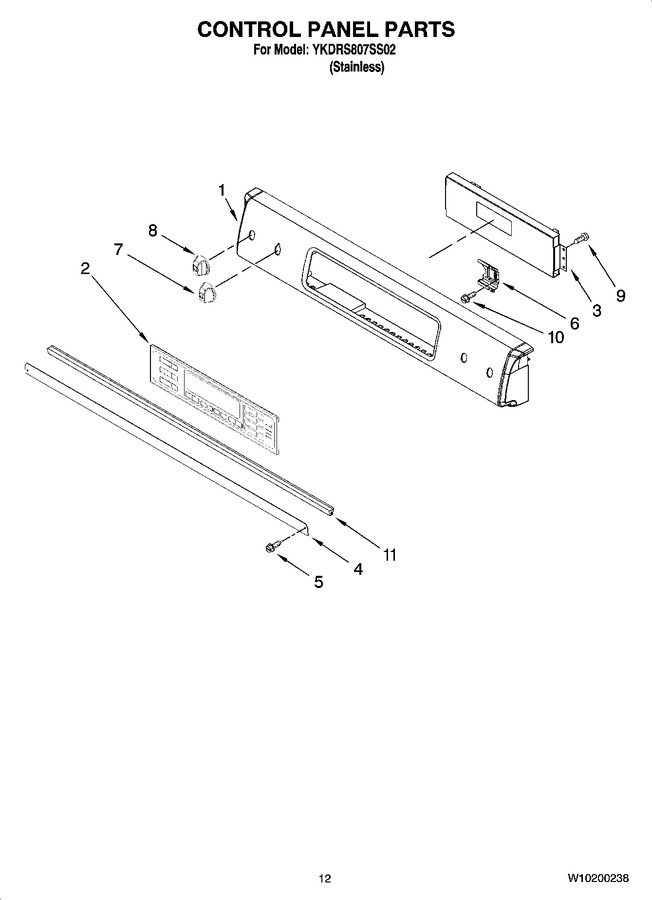

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10156270 | Control Panel |
|
$ 230.06 | |||||
| 2 | WP9761566 | Switch, Membrane (Replaces: 9761566) |
|
Immediately | $ 405.23 | ||||
| 3 | W10181439 | Control, Interface |
|
$ 483.37 | |||||
| 4 | W10105370 | Shield, Console |
|
$ 69.83 | |||||
| 5 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 6 | 9761745 | Bracket, Touchsensor |
|
$ 40.75 | |||||
| 7 | W10156262 | Knob (lf) |
|
$ 20.88 | |||||
| 8 | WPW10156265 | Knob (lr, Rf, Rr) (Replaces: W10156265) |
|
$ 60.54 | |||||
| 9 | 9780271 | Screw |
|
- | |||||
| 10 | 9763435 | Screw |
|
- | |||||
| 11 | W10116195 | Gasket, Vent Shield |
|
$ 77.94 | |||||
| W10851603 | Kit, Orifice (Replaces: 9757427) |
|
$ 104.37 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| WP4455352 | Bracket, Blower (60mm) (Replaces: 4455352) |
|
$ 32.15 | ||||||
| 9757426 | Orifice Kit |
|
$ 36.11 | ||||||
| W11447673 | Anti-tip Assembly (Replaces: 9782676) |
|
Immediately | $ 28.64 | |||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| WP261869 | Paint, Touch-up (1/2oz.) (cord Brown) (Replaces: 261869) |
|
$ 23.85 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | |||||
| 261900 | Paint, Spray (citrine White) |
|
$ 51.34 | ||||||
| 285006 | Spray Paint (black) 13 Oz. (Replaces: 830864) |
|
Immediately | $ 51.34 | |||||
| 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | ||||||
| WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 | |||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242829 | Wire (12 Ga. 150 C Red) |
|
- | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242826 | Wire (14 Ga. 150 C White) |
|
- | ||||||
| 313660 | Clip, Ground Wire |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242832 | Wire (14 Ga. 200 C Yellow) |
|
- | ||||||
| W10110729 | Harness, Main |
|
$ 251.82 | ||||||
| 9761059 | Cord, Power |
|
$ 100.54 | ||||||
| W10157935 | Harness, Switch Electric |
|
$ 123.24 | ||||||
| 9756921 | Harness, T.c.b. |
|
$ 236.23 | ||||||
| 9762921 | Harness,communication |
|
$ 126.17 | ||||||
| 9763481 | Harness, Ground Strap |
|
$ 78.41 | ||||||
| W11209404 | Connector, Flex (Replaces: W10155291) |
|
$ 102.00 | ||||||
| W10111397 | Conduit, Slide In |
|
$ 59.03 | ||||||
| 4448664 | Clamp, Conduit |
|
$ 18.35 | ||||||
| WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | |||||
| WP7103P027-60 | Nut, Terminal Block (Replaces: 7103P027-60) |
|
Immediately | $ 6.47 | |||||
| 4452222 | Spacer, Harness |
|
- | ||||||
| WP3400015 | Screw, Ground (Replaces: 3400015) |
|
$ 6.47 |
