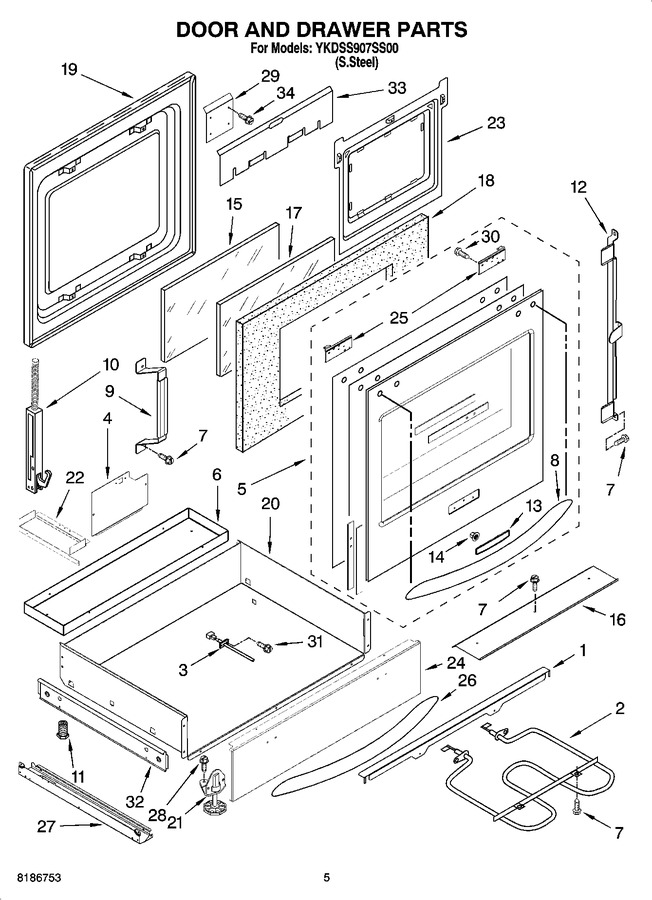

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9760775		Support, Element				$ 153.48
2	9760775		Element, Warming   (Replaces: 8054056)				$ 153.48
3	WP8274149		Sensor   (Replaces: 8274149)			Immediately	$ 172.85
4	9762919		Cover, Access		Appelez-nous	-
5	9762766SS		Glass, Door Front		Appelez-nous	-
6	9763456		Panel, Drawer		Appelez-nous	-
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
8	8303774SS		Handle, Door		Appelez-nous	-
9	9759230		Bracket, Central				$ 36.30
10	WP9760574		Hinge, Door (orange Lh)   (Replaces: 9760580)			Immediately	$ 60.36
10	WP9760579		Hinge, Door (orange Rh)   (Replaces: 9760579)			Immediately	$ 64.35
11	WPW10058460		Foot, Rear   (Replaces: 9761935)			Immediately	$ 7.07
12	WP9759229		Bracket, Side   (Replaces: 9759229)				$ 160.71
13	9763444SS		Nameplate		Appelez-nous	-
14	WP3400832		Nut   (Replaces: 3400832)			Immediately	$ 6.98
15	WP9757706		Glass, Inner   (Replaces: 9757706)			Immediately	$ 127.76
16	4457114		Shield, Heat-bottom				$ 186.68
17	WP9759225		Glass, Inner (2)   (Replaces: 9759225)			Immediately	$ 174.78
18	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 162.66
19	WP9759413		Liner, Door   (Replaces: 9759413)				$ 317.54
20	9757805		Drawer Assy		Appelez-nous	-
21	WP3196037		Foot, Front   (Replaces: 3196037)				$ 74.67
22	W10045140		Cover, Terminal		Appelez-nous	-
23	WP4457132		Retainer, Glass   (Replaces: 4457132)				$ 275.13
24	9761747SS		Front, Drawer		Appelez-nous	-
25	9763497		Bracket, Handle (r.hand)		Appelez-nous	-
25	9763496		Bracket, Handle (l.hand)		Appelez-nous	-
26	9761573SS		Handle, Drawer		Appelez-nous	-
27	9759953		Side, Base (r.side)				$ 108.70
27	9759954		Side, Base (l.side)				$ 88.47
28	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
29	8301084		Shield, Top Heat (addition) (2)		Appelez-nous	-
30	WP8533988		Screw   (Replaces: 8533988)			Immediately	$ 7.16
31	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
32	WPW10155632		Slide-drawer (l.hand)   (Replaces: W10019800)				$ 93.18
32	W10019810		Slide-drawer (r.hand)		Appelez-nous	-
33	4457104		Shield, Heat Top   (Replaces: 4457103)				$ 33.62
34	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.47

    View Diagram in Separate Window       Print Part List
