Diagram for 01 - Cooktop Parts
01 - Cooktop Parts

Diagram for 02 - Oven Parts
02 - Oven Parts

Diagram for 03 - Door And Drawer Parts
03 - Door And Drawer Parts

Diagram for 04 - Top Venting Parts
04 - Top Venting Parts

Diagram for 05 - Internal Oven Parts
05 - Internal Oven Parts

Diagram for 06 - Cooktop Burner Parts
06 - Cooktop Burner Parts

Diagram for 07 - Triple Crown Burner
07 - Triple Crown Burner

Diagram for 08 - Control Panel Parts, Optional Parts (not Included)
08 - Control Panel Parts, Optional Parts (not Included)


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10810687 Blower   (Replaces: 9759320) In-Stock Immediately $ 309.01

2 W10491987 Block, Foam   (Replaces: 4451758) In-Stock Immediately $ 6.98

5 WP8203546 Block, Terminal   (Replaces: 4449868) In-Stock Immediately $ 27.12

6 3196538 Screw Appelez-nous -
7 9757829 Bracket, Transfrmr Appelez-nous -
8 WPW10111628 Transformer   (Replaces: 9760212) Special Order $ 254.91

9 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.16

11 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

12 4451759 Vent, Exhaust Special Order $ 90.01

14 4455177 Elbow, Vent- Bottom Special Order $ 9.77

15 4455178 Elbow, Vent- Top Special Order $ 13.30

18 9759987 Box, Terminal Special Order $ 29.24

19 9759876 Cover, Term Box Special Order $ 9.53

20 W10491985 Screw   (Replaces: 3196160) In-Stock Immediately $ 6.47


    View Diagram in Separate Window     Print Icon   Print Part List

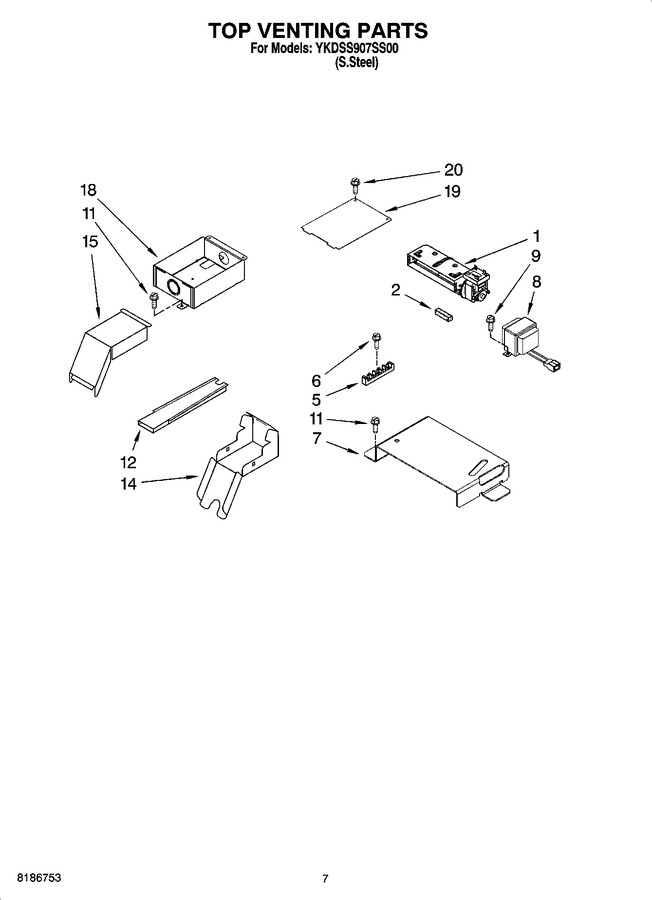

Diagram for YKDSS907SS00
