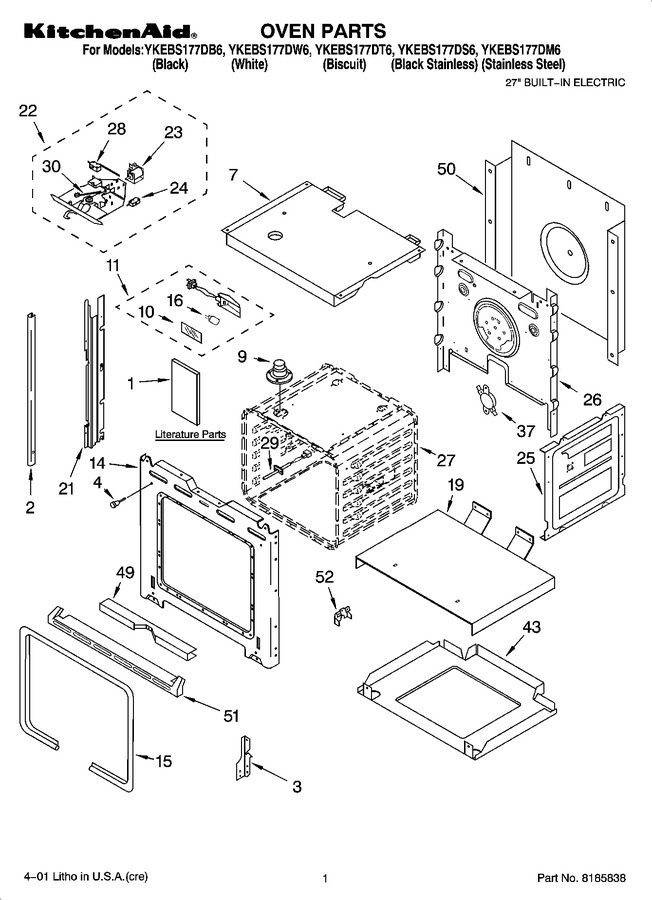

01 - Oven Parts


02 - Control Panel Parts


03 - Oven Door Parts


04 - Internal Oven Parts


05 - Top Venting Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT4450413		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT4451952		Literature Parts (use & Care Guide (english))		Appelez-nous	-
1	LIT4451953		Literature Parts (use & Care Guide (french))		Appelez-nous	-
1	LIT4449066		Literature Parts (cookbook T/c)		Appelez-nous	-
1	LIT4451898		Literature Parts (tech Sheet (english))		Appelez-nous	-
1	LIT4451899		Literature Parts (tech Sheet (french))		Appelez-nous	-
1	LIT4449264		Literature Parts (guide, Easy-set (english))		Appelez-nous	-
1	LIT4448687		Literature Parts (guide, Easy Set (french))		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
2	WPW10144983		Trim, Side Right Hand (stainless Steel Model)   (Replaces: 4452079)				$ 141.22
2	4450844		Trim, Side (right Hand) (black)		Appelez-nous	-
2	4452120		Trim, Side (right Hand) (biscuit)		Appelez-nous	-
2	4450845		Trim, Side (right Hand) (white)		Appelez-nous	-
2	4450847		Trim, Side (left Hand) (black)		Appelez-nous	-
2	4452121		(trim, Side (left Hand) (biscuit)		Appelez-nous	-
2	4450848		Trim, Side (left Hand) (white)		Appelez-nous	-
2	W10144984		Trim, Side Left Hand (stainless Steel Model)   (Replaces: 4452080)				$ 133.34
2	WP8281236		Screw (black)   (Replaces: 4449747)				$ 6.80
2	4449041		Screw (white)				$ 5.27
3	4455520		Hinge Receiver (left Hand)		Appelez-nous	-
3	4455521		Hinge Receiver (right Hand)		Appelez-nous	-
4	4448520		Bumper, Door				$ 19.07
7	4455285		Top, Chassis		Appelez-nous	-
9	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 12.62
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 104.97
10	4452163		Lens, Light				$ 12.33
11	4449748		Screw				$ 12.20
11	WP4448972		Oven Light Assy   (Replaces: 4448972)				$ 98.46
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
14	WP4450118		Nut   (Replaces: 4450118)				$ 7.16
14	4455611		Frame, Front		Appelez-nous	-
15	WP4455381		Gasket, Door   (Replaces: 4455381)				$ 159.09
16	WP4452164		Bulb, Light   (Replaces: 4452164)			Immediately	$ 60.59
19	4451477		Support, Insulation		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
21	814371		Rail, Side (right Side)   (Replaces: 4450579)				$ 109.53
21	814372		Rail, Side (left Side)   (Replaces: 4450580)				$ 108.63
21	WP4448444		Grommet   (Replaces: 4448444)				$ 6.73
21	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
22	4451896		Latch Assembly				$ 163.41
23	4452224		Solenoid		Appelez-nous	-
24	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
24	4452312		Microswitch N.c.				$ 90.43
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
25	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 129.16
26	4452233		Back, Chassis		Appelez-nous	-
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
28	4451426		Microswitch		Appelez-nous	-
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 86.25
29	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
30	4451537		Spring, Latch		Appelez-nous	-
37	WP9759242		Thermostat (tod) (temp.) Spst   (Replaces: 4452223)			Immediately	$ 77.01
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
43	4455529		Base, Chassis		Appelez-nous	-
43	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
49	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
49	WP4448933		Retainer   (Replaces: 4448933)				$ 7.97
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 128.63
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
51	4448476		Trim, Bottom (white)		Appelez-nous	-
51	4452480		Trim, Bottom (stainless Steel)		Appelez-nous	-
51	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 6.98
51	4448475		Trim, Bottom (black)		Appelez-nous	-
51	4452414		Trim, Bottom (biscuit)		Appelez-nous	-
52	4452336		Insulation, Bottom Vent		Appelez-nous	-
52	4450364		Insulation, Back		Appelez-nous	-
52	4449315		Insulation, Wrap				$ 64.81
52	4452152		Bracket, Mounting Stainless Steel Model				$ 30.15
