SELECT A DIAGRAM

01 - Oven Parts


02 - Control Panel Parts

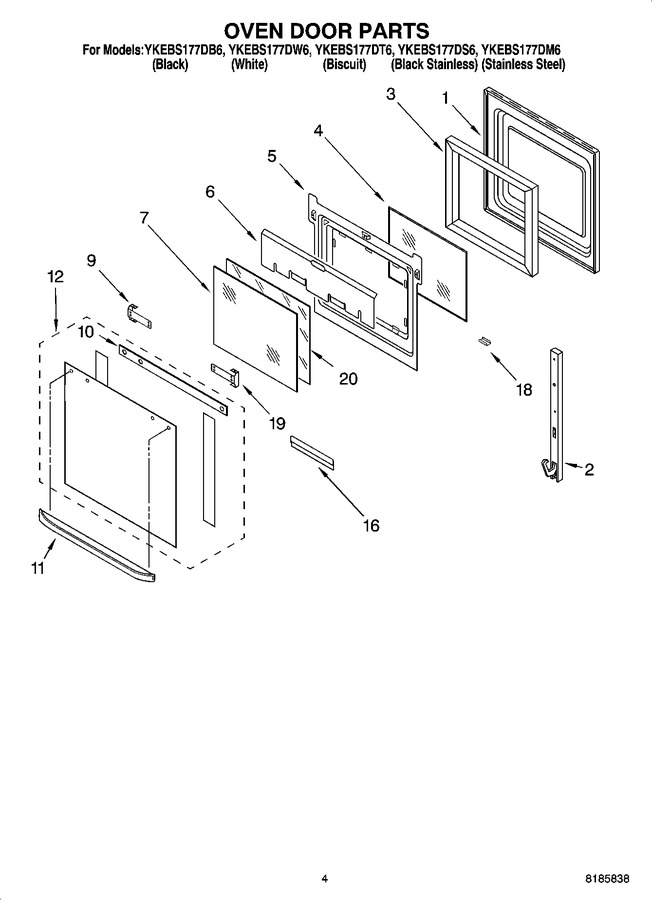

03 - Oven Door Parts


04 - Internal Oven Parts


05 - Top Venting Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4455617		Door Liner		Appelez-nous	-
2	WP4455525		Hinge For Stainless Model   (Replaces: 4454948)			Immediately	$ 69.96
2	WP4455524		Hinge, Door   (Replaces: 4455524)			Immediately	$ 61.08
2	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
3	4451721		Insulation, Door				$ 37.62
4	WP4449253		Glass, Inner   (Replaces: 4449253)				$ 151.75
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
5	4451670		Retainer, Glass		Appelez-nous	-
6	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
6	4450361		Shield, Heat		Appelez-nous	-
7	WP4449257		Glass, Inner   (Replaces: 4449257)			Immediately	$ 178.55
9	4450813		Bracket, Handle				$ 24.20
9	W10276642		Screw   (Replaces: 4451040)				$ 5.49
10	4451673		Seal, Door		Appelez-nous	-
11	4448412		Handle (white)		Appelez-nous	-
11	4448411		Handle (black)		Appelez-nous	-
11	4452128		Handle (biscuit)		Appelez-nous	-
11	4452087		Handle (stainless Steel)		Appelez-nous	-
12	4452071		Glass, Outer Assy (black)		Appelez-nous	-
12	4452072		Glass, Outer Assy (white)		Appelez-nous	-
12	4452315		Glass, Outer Assy (stainless Steel)				$ 274.20
12	4452146		Glass, Outer Assy (biscuit)		Appelez-nous	-
12	4452476		Glass, Outer Assy (black Stainless)		Appelez-nous	-
16	4451668		Retainer, Glass		Appelez-nous	-
16	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
18	4450863		Clip, Retainer (black Model)		Appelez-nous	-
18	4450864		Clip, Retainer (white Model)		Appelez-nous	-
18	4451668		Clip, Retainer (stainless)		Appelez-nous	-
19	4452487		Bracket, Handle Stainless Steel Model (right Hand)		Appelez-nous	-
19	4452488		Bracket, Handle Stainless Steel Model (left Hand)		Appelez-nous	-
20	4455256		Glass, Inner		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
