SELECT A DIAGRAM

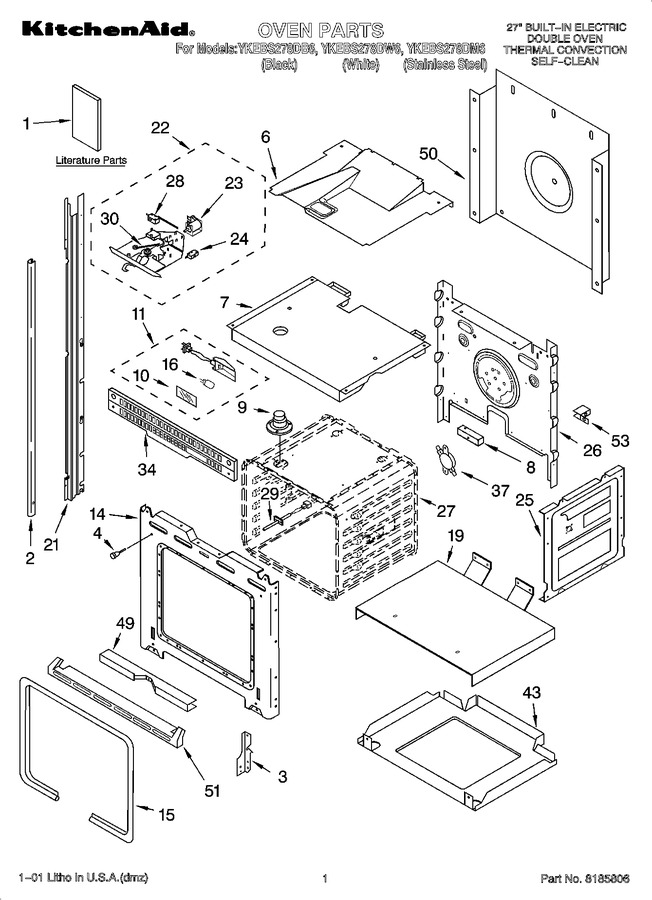

01 - Oven Parts


02 - Control Panel Parts


03 - Oven Door Parts


04 - Internal Oven Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
1	LIT4450413		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT4451952		Literature Parts (use & Care Guide (english))		Appelez-nous	-
1	LIT4451953		Literature Parts (use & Care Guide (french))		Appelez-nous	-
1	LIT4451877		Literature Parts (tech Sheet (english))		Appelez-nous	-
1	LIT4451878		Literature Parts (tech Sheet (french))		Appelez-nous	-
1	LIT4449264		Literature Parts (easy Set Guide (english))		Appelez-nous	-
1	LIT4448687		Literature Parts (easy Set Guide (french))		Appelez-nous	-
2	4450850		Trim, Side (rh Black)		Appelez-nous	-
2	4450851		Trim, Side (rh White)		Appelez-nous	-
2	4452081		Trim, Side (rh Stainless)		Appelez-nous	-
2	4450853		Trim, Side (lh Black)		Appelez-nous	-
2	4450854		Trim, Side (lh White)		Appelez-nous	-
2	4452082		Trim, Side (lh Stainless Screw)		Appelez-nous	-
2	WP8281236		Trim, Side (black Model)   (Replaces: 4449747)				$ 6.80
2	4449041		Trim, Side (white)				$ 5.27
3	4455520		Receiver, Hinge (right Hand)		Appelez-nous	-
3	4455521		Receiver, Hinge (left Hand)		Appelez-nous	-
4	4448520		Bumper, Door				$ 19.07
6	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
6	4452200		Divider, Vent		Appelez-nous	-
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
7	4455285		Top, Chassis		Appelez-nous	-
8	4452260		Spacer, Foam		Appelez-nous	-
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 104.97
9	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
10	4452163		Lens, Light				$ 12.33
11	4449748		Screw				$ 12.20
11	WP4448972		Oven Light Assy   (Replaces: 4448972)				$ 98.46
14	4455611		Frame, Front		Appelez-nous	-
14	WP4450118		Nut   (Replaces: 4450118)				$ 7.16
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
15	WP4455381		Gasket, Door   (Replaces: 4455381)				$ 159.09
16	WP4452164		Bulb, Light   (Replaces: 4452164)			Immediately	$ 60.59
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
19	4451477		Support, Insulation		Appelez-nous	-
21	814373		Rail, Side (right Side)   (Replaces: 4450581)				$ 203.87
21	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
21	WP4448444		Grommet   (Replaces: 4448444)				$ 6.73
21	814374		Rail, Side (left Side)   (Replaces: 4450582)				$ 204.20
22	4451896		Latch Assy				$ 163.41
23	4452224		Solenoid		Appelez-nous	-
24	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
24	4452312		Microswitch N.c.				$ 90.43
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
25	4454691		Side, Chassis (r.h. & L.h.)		Appelez-nous	-
26	4452233		Back, Chassis		Appelez-nous	-
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
28	4451426		Switch, Micro		Appelez-nous	-
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 86.25
29	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
30	4451537		Spring, Latch		Appelez-nous	-
34	4452266		Vent, Center				$ 60.71
37	WP9759242		Thermostat (tod)   (Replaces: 4452223)			Immediately	$ 77.01
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
43	4451397		Base, Chassis		Appelez-nous	-
43	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
49	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 7.97
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 128.63
51	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 6.98
51	4448475		Trim, Bottom (black Model)		Appelez-nous	-
51	4448476		Trim, Bottom (white Model)		Appelez-nous	-
51	4452480		Trim, Bottom (stainless Steel)		Appelez-nous	-
53	4450364		Insulation, Back		Appelez-nous	-
53	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
53	4449845		Support, Bracket		Appelez-nous	-
53	4449315		Insulation, Wrap				$ 64.81
