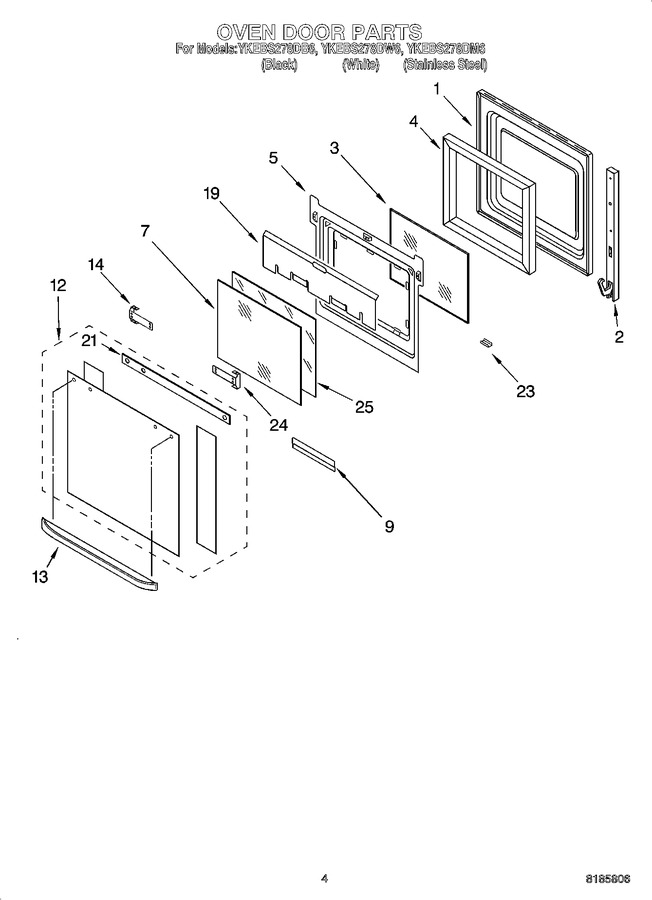

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4451718		Door Liner		Appelez-nous	-
2	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
2	WP4455525		Hinge, Door (stainless Steel Model)   (Replaces: 4455525)			Immediately	$ 69.96
2	WP4455524		Hinge, Door (white & Black Models)   (Replaces: 4455524)			Immediately	$ 61.08
3	WP4449253		Glass, Inner   (Replaces: 4449253)				$ 151.75
4	4451721		Insulation, Door				$ 37.62
5	4451670		Retainer, Glass		Appelez-nous	-
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
7	WP4449257		Glass, Inner   (Replaces: 4449257)			Immediately	$ 178.55
9	4451668		Retainer, Glass		Appelez-nous	-
9	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
12	4452071		Door Glass, Assy (black Model)		Appelez-nous	-
12	4452315		Door Glass, Assy (stainless Steel)				$ 274.20
12	4452072		Door Glass, Assy (white Model)		Appelez-nous	-
13	4448411		Door Handle (black Model)		Appelez-nous	-
13	4448412		Door Handle (white Model)		Appelez-nous	-
13	4452087		Door Handle (stainless Steel)		Appelez-nous	-
14	4450813		Bracket, Handle White & Black Models				$ 24.20
14	W10276642		Screw   (Replaces: 4451040)				$ 5.49
19	4450361		Shield, Heat		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
21	4451673		Seal, Door		Appelez-nous	-
23	4450864		Retainer, Clip (white Model)		Appelez-nous	-
23	4451432		Retainer, Clip (stainless Steel Model)		Appelez-nous	-
23	4450863		Retainer, Clip (black Model)		Appelez-nous	-
24	4452960		Bracket, Handle Stainless Model (left Hand)		Appelez-nous	-
24	4452959		Bracket, Handle Stainless Model (right Hand)		Appelez-nous	-
25	4455256		Glass, Inner		Appelez-nous	-
