SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Door And Drawer Parts

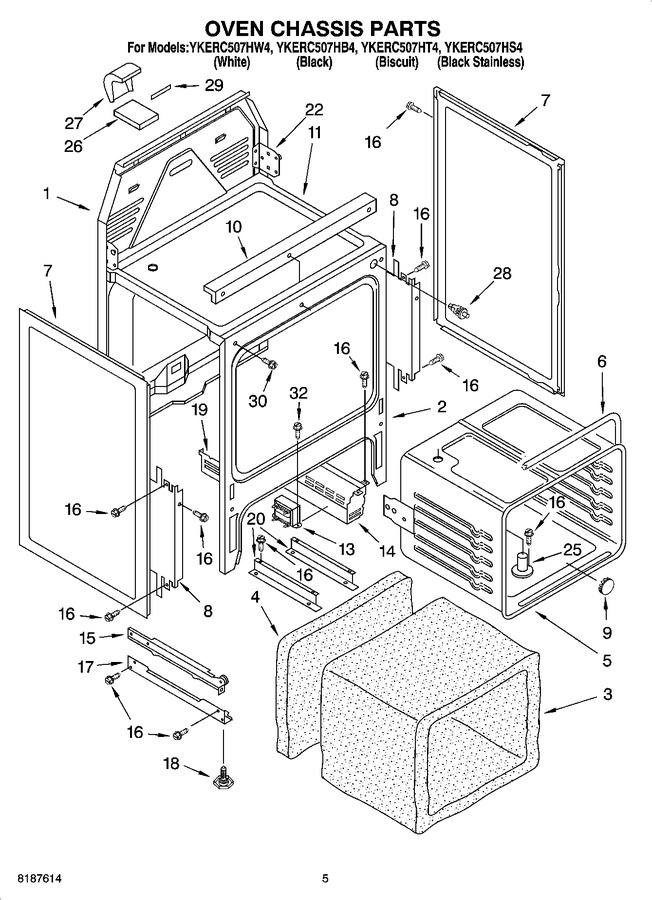

04 - Oven Chassis Parts


05 - Oven Parts


06 - Rear Chassis Parts


07 - Hidden Bake Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9750146		Main Chassis, Back		Appelez-nous	-
2	9750514GM		Chassis, Front		Appelez-nous	-
3	9754003		Insulation, Wrap		Appelez-nous	-
4	9754011		Insulation, Rear		Appelez-nous	-
5	9753744GM		Oven Liner		Appelez-nous	-
6	9755179		Gasket, Oven		Appelez-nous	-
7	9781907PW		Oven, Side L Or R (white)		Appelez-nous	-
7	9781907PC		Oven, Side L Or R (biscuit)		Appelez-nous	-
7	9781907PB		Oven, Side L Or R (black)		Appelez-nous	-
8	9780664		Shield, Insulation		Appelez-nous	-
9	9780578		Button, Plug		Appelez-nous	-
10	9780585		Wire Guard				$ 35.21
11	9750478		Burner Box		Appelez-nous	-
13	4451891		Transformer, Light		Appelez-nous	-
14	9751060		Support, Fan		Appelez-nous	-
15	9750223		Drawer Rail, Left		Appelez-nous	-
15	9750224		Drawer Rail, Right		Appelez-nous	-
16	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
17	9750147		Bottom Rail (2)		Appelez-nous	-
18	WPW10058460		Foot, (4)   (Replaces: 312701)			Immediately	$ 7.07
19	9782005		Hinge, Base L Or R		Appelez-nous	-
20	9781904		Support Rail, Pan		Appelez-nous	-
22	9750416		Hinge, Cktp.-right		Appelez-nous	-
22	9750258		Hinge, Cktp.-left		Appelez-nous	-
25	9753091		Vent Tube		Appelez-nous	-
26	9750393		Cover, Vent		Appelez-nous	-
27	9750394		Back, Vent		Appelez-nous	-
28	9781581		Switch, Door-light				$ 65.60
29	9750767		Vent Gasket		Appelez-nous	-
30	9780275		Screw, 8-18 X 3/8		Appelez-nous	-
32	9780269		Screw, 8-32 X 3/8		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
